Industrial X-ray Inspection System Automatic Navigation SMT

Marchio:	WELLMAN
Numero modello:	X6800m
Moq:	1
Termini di pagamento:	T/T

Informazioni Dettagliate

Descrizione del prodotto

Informazioni Dettagliate

Luogo di origine:

Cina

Certificazione:

CE, FDA

Sistema operativo:

Windows 10

Risoluzione:

1536*1536

Applicazione:

Ispezione dei PCB

Dimensione di punto del fuoco:

5μm

Voltaggio:

AC 220V

Angolo di rilevazione di inclinazione:

60 °

Tubo a raggi X.:

Tipo chiuso

Tensione massima del tubo:

90kv

Area effettiva:

130 mm*130 mm

Dimensione pixel:

85 μm

Corrente massima del tubo:

200μA

Imballaggi particolari:

Custodia in legno

Evidenziare:

Industrial X-ray inspection system

,

Automatic navigation SMT machine

,

PCB X-ray machine with warranty

Descrizione del prodotto

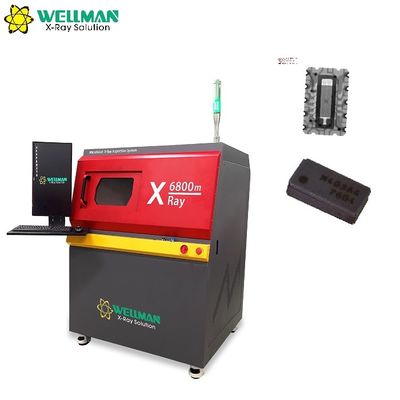

Industrial X-ray Inspection System Automatic Navigation SMT

X6800M Electronic X-Ray Inspection System (WELLMAN)
High-performance inspection system equipped with Japan Hamamatsu X-ray tube (over 10,000 hours lifetime), 60° tiltable FPD, and 1500X high magnification

Key Advantages

Automatic navigation window - table moves to clicked position
430*430mm table with 15kg load capacity
Speed-regulable 5-axis linkage system maintains image centering during tilting
Tailorable inspection procedures for automated batch testing
User-friendly interface requiring just 2 hours of training
60° tiltable FPD maintains magnification during inspection
Japan Hamamatsu X-ray tube - world's best closed type with 10,000+ hours lifetime (maintenance-free)
New generation 5" HD digital flat panel detector (FPD)

Hardware Specifications

X-ray Source
Brand	Japan Hamamatsu
Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector
Effective area	130mm*130mm
Pixel size	85μm
Resolution	1536*1536
Frame rate	20fps
Tiltable angle	60°

Table
Size	430mm*430mm
Detectable area	410mm*410mm
Max load	15kg

Equipment
Magnification	Geometry: 150X \| System: 1500X
Inspection speed	Max 3.0s/point
Dimensions	1220mm (L) * 1250mm (W) * 1600mm (H)
Weight	1250kg
Power supply	AC110-220V 50/60HZ
Max power	1500W
Industrial PC	I5 CPU, 4G RAM, 240GB SSD
Displayer	24" HDMI LCD

Software Functions

Basic Operations

Full keyboard and mouse control
Navigation window for precise table positioning
Real-time motion axis coordinate display
Inspection results display with measurement data
Adjustable axis movement speeds (slow/normal/fast)
X-ray control via mouse click, with real-time display of voltage and current
The status bar displays interlock status, pre-heat status, and X-ray status
Image brightness, contrast, and gain can be adjusted as needed
A product list allows for saving and recalling of inspection parameters

Voids Rate Measurement

Automatic calculation of voids rate, solder ball area, circumference
Adjustable grayscale threshold, pixel, contrast, and size filtering
Manual void addition via polygon or freehand drawing
Parameter saving for consistent product inspection

Measurement Functions

Distance measurement between points
Distance rate calculation for through-hole soldering
Radius measurement for circular components
Perimeter measurement for square components
Angle measurement between defined points

Automatic Inspection

Manual point setting for customized inspection positions
Array mode for regular inspection point patterns
Automatic feature recognition for characteristic inspection points

Safety Features

Radiation leakage: No leakage (≤1μSv/h, international standard)
Transparent lead glass observation window for safe internal viewing
Window and back door safety interlock - X-ray powers off when opened
Emergency stop button located near operation position
Tube protection prevents leaving software without closing X-ray
Electromagnetic safety switch locks when X-ray is active

Working Principle

Industrial X-ray Inspection System Automatic Navigation SMT 0

Microfocus X-Ray Inspection System working principle

Application Examples

Industrial X-ray Inspection System Automatic Navigation SMT 1

X-Ray inspection system application example 1

Industrial X-ray Inspection System Automatic Navigation SMT 2

X-Ray inspection system application example 2
