| Brand Name: | WELLMAN |
| Model Number: | SMD-A |
| MOQ: | 1 |
| Payment Terms: | T/T |

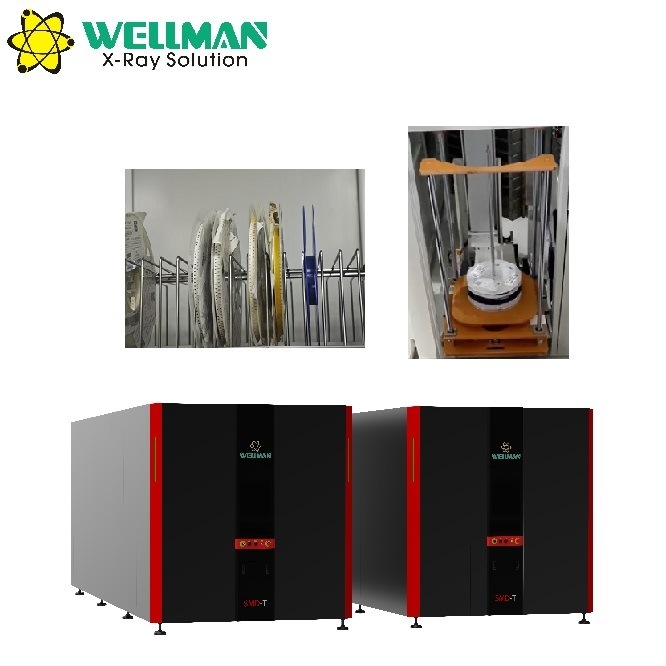

Advanced 10s/reel storage solution with MES/ERP/WMS connectivity for optimized inbound/outbound efficiency in industrial settings.
| Feature | Specification |
|---|---|
| In/Out Storage & Scanning | Barcode and QR code compatible |
| Material Type | SMD reel |
| Batch Loading | Supported |
| Inbound/Outbound Efficiency | Approximately 10 seconds per reel |
| Reel Compatibility | 7-15 inches |
| Reel Thickness | 5-50 mm (customizable) |
| Maximum Weight | 3KG (customizable) |
| Standard Capacity | 10,000 pcs (7" & 10mm reel) |
| System Connectivity | Multi-warehouse connection supported |
| WMS Management | Included |
| Environmental Monitoring | Temperature and humidity warning system |
| Operating System | Windows 10 |
| Chip Mounter Communication | Optional |
| Management System Integration | MES, ERP, WMS compatible |
| Parameter | Specification |
|---|---|
| Dimensions | 10000mm (L) * 2000mm (W) * 2800mm (H) - customizable |
| Weight | 8000KG - customizable |
| Power Supply | 220V - customizable |
| Power Consumption | 3000W+ - customizable |
| Industrial PC | i7 CPU, 16GB RAM, 1TB SSD |
| Display | 17" touch screen |
| Operating Temperature | 15-30°C |
| Operating Humidity | 10-85% |
| Noise Level | 50dB |
| Air Pressure | 0.5-0.7mpa |
| N2 Interface | Supported |
| Function | Description |
|---|---|
| Material Management | Transform unique codes for new materials and add to master inventory |
| Tower Setup | Configure new Intelligent Warehouse locations |
| Supplier/Customer Info | Manage supplier and customer databases with CRUD functionality |
| Inventory Control | Comprehensive intelligent inventory management |
| Inventory Freeze | Lock specific storage locations as needed |
| Inventory Verification | Physical stock checks with data synchronization |
| Scan & Load | Barcode scanning for reel placement |
| Component | Functionality |
|---|---|
| Location Parameters | Stores coordinate and dimensional data for each storage location |
| Current Warehouse Status | Tracks real-time status of all storage locations |
| In/Out Records | Comprehensive logging for material traceability |
| Operation Logs | Records system events including initialization and alarms |
| Operation | Process |
|---|---|
| System Initialization | Automated startup procedure when powered on |
| Single Reel In/Out | Precision handling of individual reels with code verification |
| Batch Processing | Automated mass loading/unloading operations |
| Production Order Management | System analyzes P/N or unique IDs to lock appropriate reels |
| Expired Reel Control | Automatic locking of expired materials to prevent production use |
