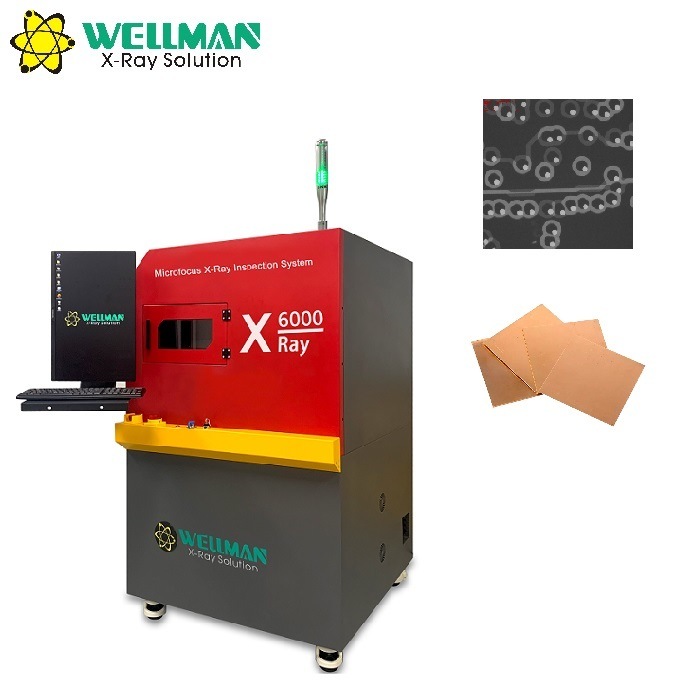

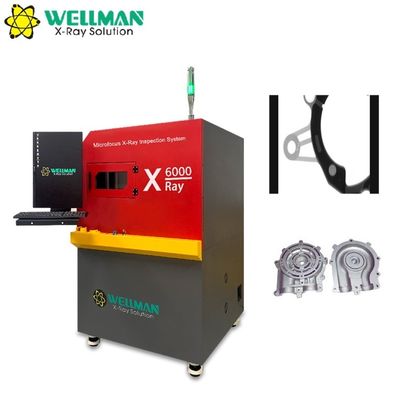

| Brand Name: | WELLMAN |
| Model Number: | X6000 |
| MOQ: | 1 |
| Price: | 24000-34000 USD |
| Payment Terms: | T/T |
| Type | Closed, microfocus |
| Max tube voltage | 90kV |
| Max tube current | 200μA |
| Focal spot size | 5μm |
| Function | Auto preheat |
| Effective area | 130mm×130mm |
| Pixel size | 85μm |
| Resolution | 1536×1536 |
| Frame rate | 20fps |
| Size | 420mm×420mm |
| Detectable area | 400mm×400mm |
| Max load | 15kg |
| Magnification | Geometry 150X | System 1500X |
| Inspection speed | Max 3.0s/point |
| Dimensions | 1100mm (L) × 1000mm (W) × 1600mm (H) |
| Weight | 1000kg |
| Power supply | AC110-220V 50/60HZ |
| Max power | 1300W |
| Industrial PC | Intel I5 CPU, 8G RAM, 240GB SSD |
| Displayer | 24" HDMI LCD |
| Radiation leakage | No leakage (≤1μSv/h, international standard) |
| Lead glass observation window | Transparent lead glass shields radiation while allowing internal observation |
| Window/door safety interlock | X-ray automatically powers off when window/door is opened |
| Electromagnetic safety switch | Locks observation window when X-ray is active |
| Emergency stop | Instant power-off button near operation position |
| Tube protection | Software prevents X-ray tube from being left on |
