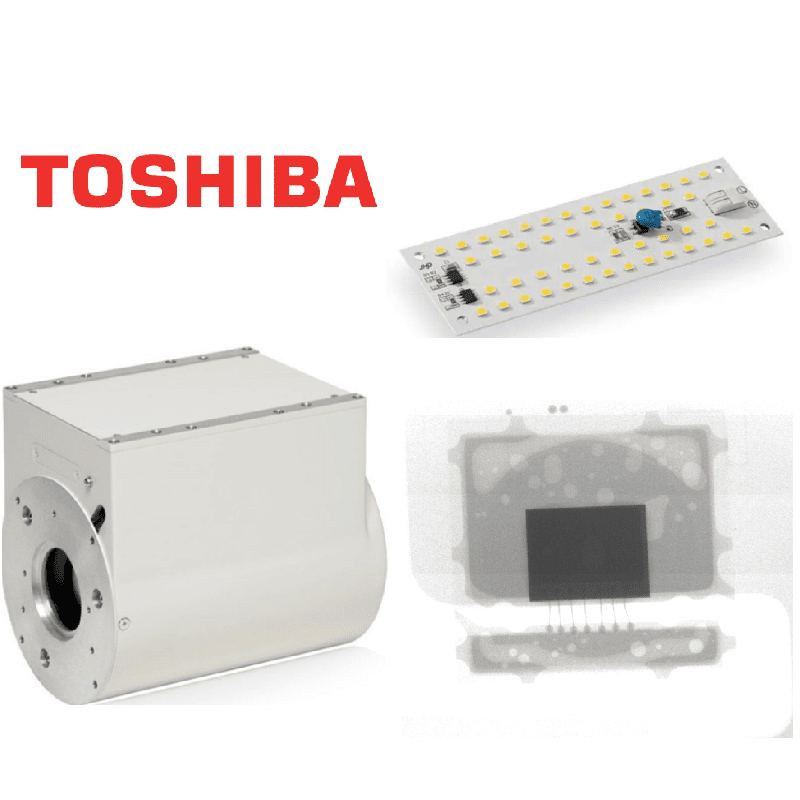

| Brand Name: | Toshiba |
| Model Number: | E5877J-P1K |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Overall Length | 226±3 mm |
| Maximum Diameter | 164±3 mm |
| Nominal Entrance Field Size | typ. 100 mm |
| Output Image Diameter | 20±1 mm |
| Weight | approx. 8.0 kg |
| Anode Voltage | 25 to 30 kV (N mode), 25 to 30 kV (M mode) |
| G3 Electrode Voltage | 1.5 to 3.5 kV (N mode), 9.0 to 12.0 kV (M mode) |
| G2 Electrode Voltage | 350 to 750 V (N mode), 150 to 550 V (M mode) |
| G1 Electrode Voltage | 50 to 250 V (N mode), 150 to 350 V (M mode) |
| Photocathode Voltage | 0 V |
| DC Power Supply Input Voltage | 100 to 240 Vac 30VA |
| DC Power Supply Output Voltage | 24±1 Vdc |
| DC Power Supply Output Current | 400 mA max. |
| Weight | approx. 1 kg |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -15°C to 45°C |
| Operating Humidity | 30% to 85% RH (non-condensing) |
| Storage Humidity | 10% to 90% RH (non-condensing) |
| Operating Pressure | 70 to 106 kPa |
| Storage Pressure | 50 to 106 kPa |
| Central Resolution | 77 Lp/cm (N mode), 110 Lp/cm (M mode) |
| Conversion Factor (Gx) | 90 cd/m2 (typ.) for 10 μGy/s (N mode), 90 cd/m2 (typ.) for 1 mR/s (M mode) |
| Contrast Ratio | 22:1 (10% area) (N mode) |
| Maximum Fluoroscopic X-ray Tube Voltage | 125 kVp |
| Maximum Input Dose Rate | Continuous 4.37*10^-4 Gy/min [50 mR/min], Pulsed 8.73*10^-3 Gy/min [1 R/min] |
| Minimum Distance Between Focal Spot and Entrance Plane | 73 cm |
