| Brand Name: | Canon |
| Model Number: | E5877J-P1K |
| MOQ: | 1 |
| Payment Terms: | T/T |

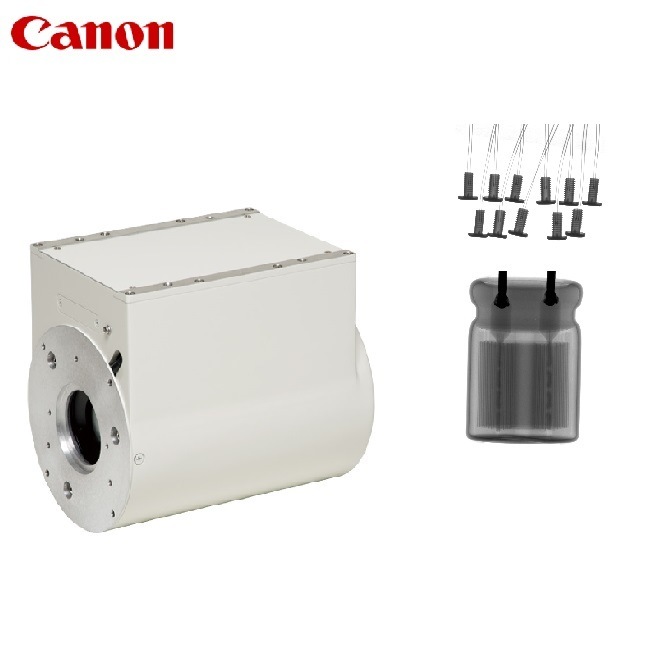

The X-ray Image Intensifier E5877J-P1K is a high-performance industrial imaging solution designed to provide clear and detailed X-ray images. It features very high resolution and efficient soft X-ray penetration, making it ideal for non-destructive inspection applications in industries such as electronics, automotive, and aerospace.
This lightweight and compact device enhances imaging efficiency and precision, ensuring reliable and accurate results.
| Specification | Value |
|---|---|
| Overall Length | 226±3 mm |
| Maximum Diameter | 164±3 mm |
| Nominal Entrance Field Size | typ. 100 mm |
| Output Image Diameter | 20±1 mm |
| Weight | approx. 8.0 kg |
| Parameter | N Mode | M Mode |
|---|---|---|
| Anode Voltage | 25 to 30 kV | 25 to 30 kV |
| G3 Electrode Voltage | 1.5 to 3.5 kV | 9.0 to 12.0 kV |
| G2 Electrode Voltage | 350 to 750 V | 150 to 550 V |
| G1 Electrode Voltage | 50 to 250 V | 150 to 350 V |
| Photocathode Voltage | 0 V | |
| Parameter | Specification |
|---|---|
| Input Voltage | 100 to 240 Vac 30VA |
| Output Voltage | 24±1 Vdc |
| Output Current | 400 mA max. |
| Weight | approx. 1 kg |
| Parameter | Operating Range | Storage Range |
|---|---|---|
| Temperature | 5°C to 40°C | -15°C to 45°C |
| Humidity | 30% to 85% RH (non-condensing) | 10% to 90% RH (non-condensing) |
| Pressure | 70 to 106 kPa | 50 to 106 kPa |
| Parameter | N Mode | M Mode |
|---|---|---|
| Central Resolution | 77 Lp/cm | 110 Lp/cm |
| Conversion Factor (Gx) | 90 cd/m² (typ.) for 10 μGy/s | 90 cd/m² (typ.) for 1 mR/s |
| Contrast Ratio | 22:1 (10% area) | - |
| Parameter | Specification |
|---|---|
| Maximum Fluoroscopic X-ray Tube Voltage | 125 kVp |
| Maximum Input Dose Rate (Continuous) | 4.37*10⁻⁴ Gy/min [50 mR/min] |
| Maximum Input Dose Rate (Pulsed) | 8.73*10⁻³ Gy/min [1 R/min] |
| Minimum Distance Between Focal Spot and Entrance Plane | 73 cm |
