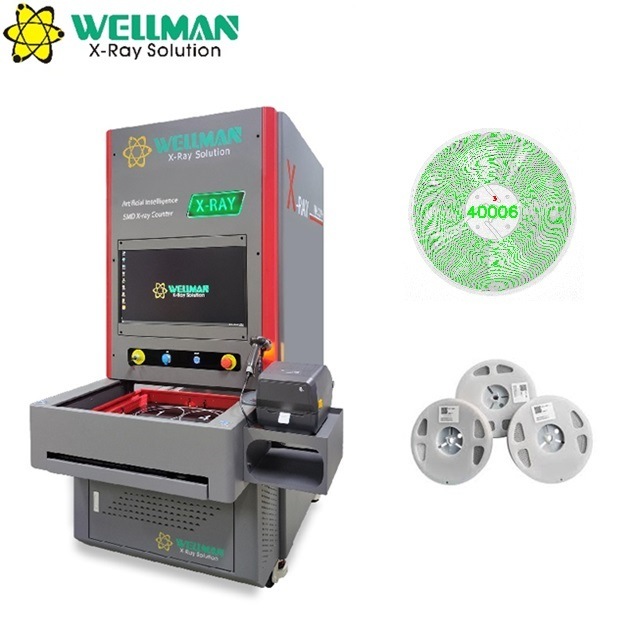

| Brand Name: | WELLMAN |
| Model Number: | XC-01 |
| MOQ: | 1 |
| Price: | 20000-30000 USD |
| Payment Terms: | T/T |
| X-ray Source | ||
|---|---|---|
| Type | Integrated, microfocus | |
| Max tube voltage | 80kV | |
| Max tube current | 700μA | |
| Focal spot size | 30μm | |
| Flat Panel Detector | ||
| Type | Super definition digital FPD | |
| Effective area | 430mm * 430mm | |
| Pixel size | 139μm | |
| Resolution | 3072 * 3072 | |
| Counting Performance | ||
| Max reel size | 17" (430mm) | |
| Max thickness | 88mm | |
| Min parts size | 01005 | |
| Counting speed | 7-10 seconds | |
| Accuracy | 01005 ≥ 99.98% | 0201 & above ≥ 99.99% |
| Reel size | Parts size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7" (180mm) | 01005 | 40000 | 99.98% | 9-10s |
| 7" (180mm) | 0201 | 20000 | 99.99% | 8-9s |
| 7" (180mm) | 0402 | 10000 | 99.99% | 7-8s |
| 7" (180mm) | 0603 | 5000 | 99.99% | 7-8s |
| 10" (254mm) | 1206 | 5000 | 99.99% | 7-8s |
| 15" (380mm) | 1206 | 10000 | 99.99% | 7-8s |
