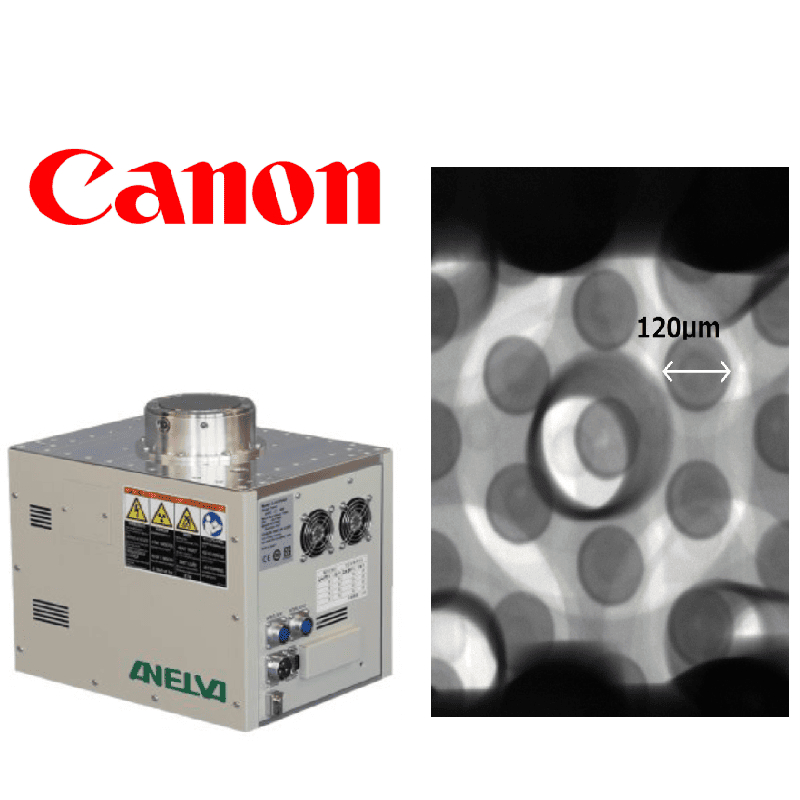

| Brand Name: | Canon |
| Model Number: | G-311 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Dimensions | 270 mm (L) x 150 mm (W) x 110 mm (H) |
| Weight | 21 kg (G-511VL-D), 24 kg (G-511VL-DL) |
| Installation Surfaces | Top (ray exit side) and bottom |
| Mounting | 4 x M5, Depth 10, 8 x M5, Depth 5 |
| Maximum Power Consumption | 53W |
| Input Voltage | DC 24V (+1.2, -1.2) |
| Tube Voltage Operational Range | 40-110kV |
| Tube Current Operational Range | 10-100μA |
| Maximum Output | 20W |
| Operating Temperature | 10°C to 45°C |
| Storage Temperature | 0°C to 50°C |
| Humidity | ≤85% RH (non-condensing) |
| X-ray Beam Angle | 168° (maximum), 80° (80%, equidistant) |
| X-ray Window Material/Thickness | C (Diamond) / 0.29mm |
| Target Material | W (Tungsten) |
| X-ray Dose Uniformity | Refer to graph (Page 1) |
| Operation Mode | Continuous, Pulse (≥1sec) |
| External Control | RS-232C |
| High Voltage Power Supply | Built-in |
| Interlocks | 2 (INTERLOCK1, INTERLOCK2) |
| Cooling Method | Forced Convection |
