| Brand Name: | HAMAMATSU |
| Model Number: | L11831-01 |
| MOQ: | 1 |
| Payment Terms: | T/T |

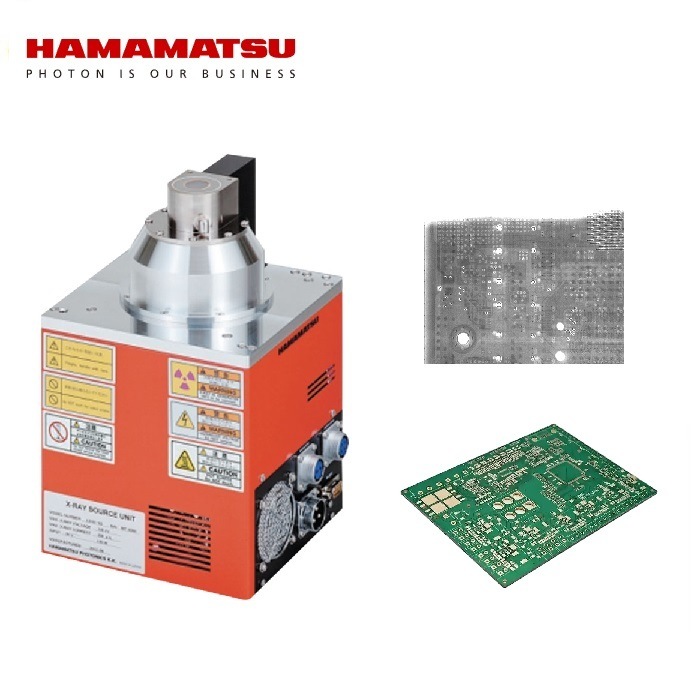

90 kV MICROFOCUS X-RAY SOURCE
Specifications
| GENERAL | |||
| Parameter | Description/Value | Unit | |
| Input Voltage(DC) | +24 | V | |
| Power Consumption(Max.) | 96 | W | |
| Operating Ambient Temperature | +10 to+40 | ℃ | |
| Storage Temperature | 0 to +50 | ℃ | |
| Operating and Storage Humidity | Below 85(No Condensation) | % | |
| Weight | Approx.10 | kg | |
| Conformance Standards | CE(EMC:IEC61326-1,Group1.Class A) | 一 | |
| Operation | Continuous | 一 | |
| High Voltage Power Supply | Built-in | 一 | |
| X-RAY TUBE | |||
| Parameter | Description/Value | Unit | |
| X-ray Tube | Sealed Type | 一 | |
| X-ray Tube Cooling Method | Convection Cooling | __ | |
| X-ray Tube Window Matenal/Thickness | Berylium/150 | μm | |
| Target Material | Tungsten | 一 | |
| Tube Voltage OperationalRange | 20 to 90 | kV | |
| Tube Current Operational Range① | 10 to 200 (8 WMax.) | μA | |
| Maximum Output | 8 | W | |
| X-ray Focal Spot Size | 7(5μm at 4W) | μm | |
| X-ray Beam Angle (Coned) | 39 | degrees | |
| Focus to Object Distance (FOD) | 9.5 | mm | |
| X-RAY CONTROL PART | |||
| Parameter | Description | Unit | |
| Function | Tube Voltage and Tube Current Preset /Auto Warm-up | 一 | |
| Protection | Interlock | 一 | |
| External Control | RS-232C | 一 | |
| Applicable OS | Windows2000 Professional,XP Professional | __ | |
| Computer Operating Conditions | CPU:IntelPentium or Higher,Memory:64MB or More | 一 | |
Tube Current Operational Range
Dimensional Outline
