Name: Microfocus X Ray Tester Automotive Electronics PCB Inspection
Brand: SHENZHEN WEIMING PHOTOELECTRIC CO.,LTD.
SKU: X6800
Availability: InStock

Brand Name:	WELLMAN
Model Number:	X6800
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,FDA

Warranty:

12 Months

Power Supply:

AC220V(Optional),110V - 220V,220V 50Hz

Tube Type:

Closed X-ray Tube,Closed

Operating System:

Windows 10

X-ray Leakage Amount:

≤1 U Sv/h,≤0.3 U Sv/h

Capacity:

Large,20KVA

Max Tube Voltage:

90kv

Effective Area:

130mm*130mm

Pixel Size:

85μm

Resolution:

1536*1536

Max Tube Current:

200μA

Packaging Details:

Wooden case

Highlight:

Microfocus X Ray tester for PCB inspection

Automotive electronics X Ray machine

PCB X Ray tester with warranty

Product Description

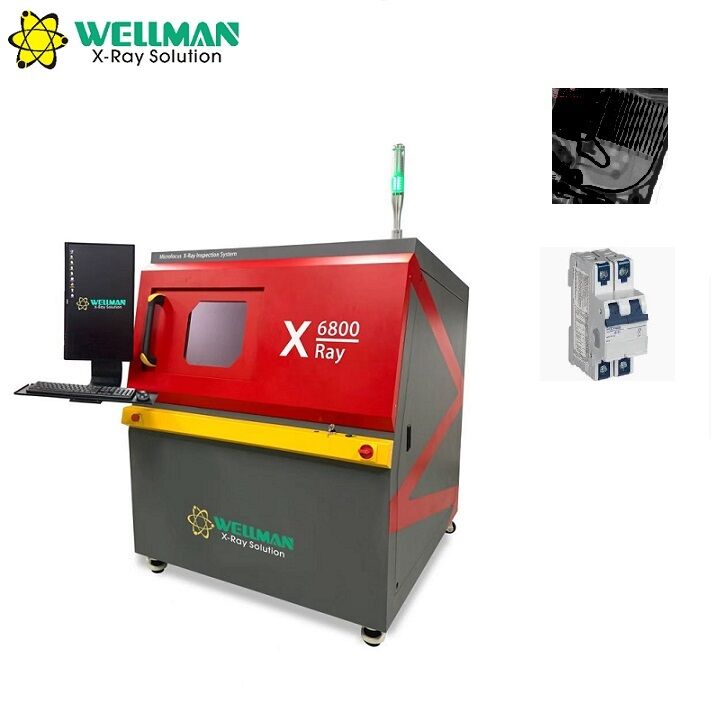

Wellman Microfocus X Ray Tester Automotive Electronics PCB Inspection Machine X6800

Key Advantages

Closed-type X-ray tube with 10,000+ hour service life and maintenance-free performance
5" HD digital flat panel detector (FPD) featuring 60° tilt functionality
Programmable inspection protocols enabling automated batch inspection
User-friendly operation with only 2 hours of training required
Automatic navigation window for precise table positioning
530*530mm table with 10KG load capacity
5-axis linkage system with adjustable speed

Hardware Specifications

X-ray Source

Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector

Effective area	130mm*130mm
Pixel size	85μm
Resolution	1536*1536
Frame rate	20fps
Tiltable angle	60°

Table Specifications

Size	530mm*530mm
Detectable area	500mm*500mm
Max load	10kg

Equipment Specifications

Magnification	Geometry 200X \| System 1500X
Inspection speed	Max 3.0s/point
Dimensions	1360mm (L) * 1365mm (W) * 1730mm (H)
Weight	1200kg
Power supply	AC110-220V 50/60HZ
Max power	1500W
Industrial PC	I5 CPU, 8G RAM, 500GB SSD
Displayer	24" HDMI LCD

Working Principle

X6800 PCB X-ray Inspection Machine working principle diagram

Safety Features

Tube protection feature: Prohibits exiting the software without closing the X-ray tube
Transparent lead glass observation window: Shields radiation while enabling internal viewing
Electromagnetic safety switch: Automatically locks when the X-ray is in operation
Emergency stop button near operation position
Window and back door safety interlock system
Radiation leakage: ≤1μSv/h (international standard)

Software Capabilities

Core Functions
