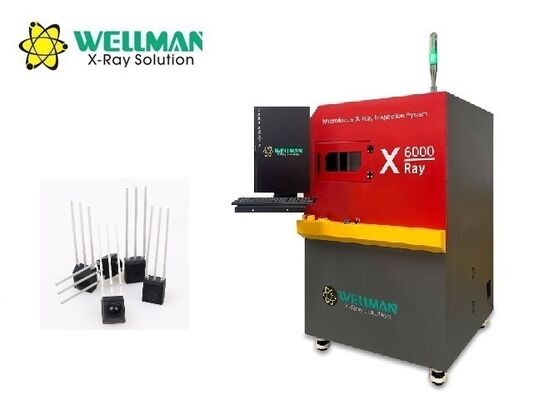

X-ray Inspection Machine X6000 - Advanced automated inspection system featuring high-definition digital imaging and easy operation for industrial quality control applications.

Key Advantages

130×130 mm high-definition digital flat panel detector
420×420 mm table with 15KG load capacity
Automatic navigation window - table moves to your click location
Hamamatsu tubes ensure extended lifespan and maintenance-free operation
Programmable inspection procedures for automated inspection
Easy operation with quick defect identification - only 2 hours training required

Working Principle

Hardware Specifications

X-ray Source

Type	Closed, microfocus
Max Tube Voltage	90kV
Max Tube Current	200μA
Focal Spot Size	5μm
Function	Auto preheat

Flat Panel Detector

Effective Area	130mm×130mm
Pixel Size	85μm
Resolution	1536×1536
Frame Rate	20fps

Table

Size	420mm×420mm
Detectable Area	400mm×400mm
Max Load	15kg

Equipment

Magnification	Geometry 150X \| System 1500X
Inspection Speed	Max 3.0s/point
Dimensions	1100mm (L) × 1000mm (W) × 1600mm (H)
Weight	1000kg
Power Supply	AC110-220V 50/60HZ
Max Power	1300W
Industrial PC	Intel I5 CPU, 8G RAM, 240GB SSD
Displayer	24" HDMI LCD

Safety Features

Radiation Leakage	No leakage
Lead Glass Observation Window	Transparent lead glass window shields radiation to observe internal status
Window and Back Door Safety Interlock	X-ray tube powers off immediately when window or door opens
Electromagnetic Safety Switch	Locks when X-ray is on, preventing window opening
Emergency Stop	Located next to operation position for immediate power cutoff
Tube Protection	Software prevents leaving without closing X-ray tube

Software Functions

Function Module

Operation	Keyboard and mouse can finish all operations
X-ray tube control	Using mouse to click the X button can turn on or off the X-ray
Status bar	Indicates the interlock status, pre-heat status, and X-ray status by flashing alternately red and green
Image effect adjustment	The brightness, contrast and gain of the image can be adjusted freely to achieve a satisfactory result
Product list	Users can save the inspection parameters such as Z-axis position, brightness, contrast and gain, and can directly call the parameters
Navigation window	The table will move to the place you click and display on the screen
Motion axis status	Display real-time coordinates
Inspection result	The measurement results (voids rate, distance, area, etc., set by users) display in order
Speed control	The movement speed of each axis can be adjusted to slow, normal and fast

Voids Rate Measurement

Automatic calculation	Click on two points to determine a rectangle
Parameters adjustment	Users can adjust the grayscale threshold, pixel, contrast, size filtering and other parameters
Add voids manually	Users can draw a polygon or a free figure and calculate it as a void into the void rate
Save parameters	Users can save parameters such as grayscale threshold, pixel, contrast, size filtering and other parameters, and can directly call the parameters

Other Measurement Functions

Distance	Click the A and B points to set as the baseline, then click the C point to measure the vertical distance from the C point to the baseline
Distance rate	It is mostly used to measure the soldering rate of the through-hole
Angle	Click the A and B points to set as the baseline, then click the C point to measure the angle between the BA and BC rays
Radius	Click three points to determine a circle and measure the circumference, area and radius
Perimeter	It is mostly used to measure square components, click two points to determine a square, measure the length, width and area

Automatic Inspection

Manual setting	Users can set any positions on the table as inspection points, the software will automatically inspect and save the picture
Array	For the regular inspection points, users only need to set two of the inspection points and the number of rows and columns, the software will automatically inspect each point and save pictures
Automatic identification	For inspection points with obvious features, the software automatically identifies the positions, takes measurements, and saves the image
