| Brand Name: | WELLMAN |

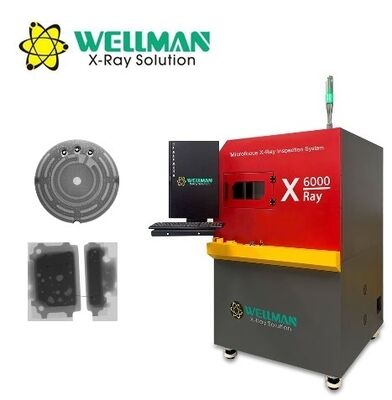

| Model Number: | X-Ray X-6000 |
| MOQ: | 1 |
| Price: | 26000-40000 dollars |
| Payment Terms: | T/T |
| X-ray Source | ||
|---|---|---|
| Type | Closed, microfocus | |
| Max Tube Voltage | 90kV | |
| Max Tube Current | 200μA | |
| Focal Spot Size | 5μm | |
| Function | Auto preheat | |
| Flat Panel Detector | ||
| Effective Area | 130mm×130mm | |
| Pixel Size | 85μm | |
| Resolution | 1536×1536 | |
| Frame Rate | 20fps | |
| Table | ||
| Size | 420mm×420mm | |
| Detectable Area | 400mm×400mm | |
| Max Load | 15kg | |
| Equipment | ||
| Magnification | Geometry 150X | System 1500X |
| Inspection Speed | Max 3.0s/point | |
| Dimensions | 1100mm (L) × 1000mm (W) × 1600mm (H) | |
| Weight | 1000kg | |
| Power Supply | AC110-220V 50/60HZ | |
| Max Power | 1300W | |
| Industrial PC | Intel I5 CPU, 8G RAM, 240GB SSD | |
| Displayer | 24" HDMI LCD | |
| Safety Features | ||
| Radiation Leakage | No leakage, international standard: ≤1μSv/h | |
| Lead Glass Observation Window | Transparent lead glass window shields radiation to observe internal status | |
| Window and Back Door Safety Interlock | X-ray tube powers off immediately when window or door opens; prevents X-ray activation when open | |
| Electromagnetic Safety Switch | Locks when X-ray is on, preventing window opening | |
| Emergency Stop | Located next to operation position for immediate power cutoff | |
| Tube Protection | Software prevents leaving without closing X-ray tube | |
| Function Module | Operation |
|---|---|
| X-ray Tube Control | Mouse-click activation with real-time voltage/current display and adjustment controls |
| Status Bar | Displays interlock status, pre-heat status, and X-ray status with red/green indicators |
| Image Effect Adjustment | Adjustable brightness, contrast and gain for optimal image quality |
| Product List | Save and recall inspection parameters for improved efficiency |
| Navigation Window | Click-to-move functionality with camera-guided positioning |
| Motion Axis Status | Real-time coordinate display |
| Inspection Result | Organized display of measurement results including voids rate, distance, area with OK/NG indicators |
| Speed Control | Adjustable movement speed for each axis (slow, normal, fast) |
| Voids Rate Measurement | Automatic calculation with adjustable parameters for precise results |
| Other Measurement Functions | Distance, distance rate, angle, radius, perimeter, and area calculations |
| Automatic Inspection | Manual setting, array configuration, and automatic identification modes |
