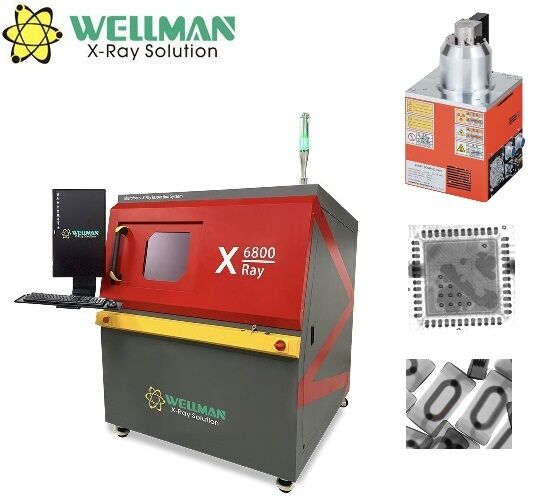

| Brand Name: | WELLMAN |
| Model Number: | X6800 |
| Payment Terms: | T/T |
| X-ray Source | ||
|---|---|---|
| Type | Closed, microfocus | |
| Max tube voltage | 90kV(110kv,130kv optional) | |
| Max tube current | 200μA | |
| Focal spot size | 5μm | |
| Function | Auto preheat | |
| Flat Panel Detector | ||
| Effective area | 130mm×130mm | |
| Pixel size | 85μm | |
| Resolution | 1536×1536 | |
| Frame rate | 20fps | |
| Tiltable angle | 60° | |
| Table Specifications | ||
| Size | 530mm×530mm | |
| Detectable area | 500mm×500mm | |
| Max load | 10kg | |
| Equipment Specifications | ||
| Magnification | Geometry 200X | System 1500X |
| Inspection speed | Max 3.0s/point | |
| Dimensions | 1360mm (L) × 1365mm (W) × 1730mm (H) | |
| Weight | 1200kg | |
| Power supply | AC110-220V 50/60HZ | |
| Max power | 1500W | |
| Industrial PC | I5 CPU, 8G RAM, 500GB SSD | |
| Displayer | 24" HDMI LCD | |
| Safety Features | ||
|
Radiation leakage: No leakage, meeting international standard (≤1μSv/h) |
||
|
Transparent lead glass observation window for safe internal viewing |
||
|
Window and back door safety interlock system |
||
|
Electromagnetic safety switch locks when X-ray is active |
||
|
Emergency stop button located near operation position |
||
|
Automatic tube protection when leaving software interface |
||
Working Principle
Software Capabilities
| Function Module | Operation |
|---|---|
| X-ray tube control | Mouse-click operation with real-time voltage/current display and adjustment |
| Status bar | Visual indication of interlock, pre-heat and X-ray status |
| Image effect adjustment | Customizable brightness, contrast and gain settings |
| Product list | Save and recall inspection parameters for efficiency |
| Navigation window | Click-to-move functionality for precise positioning |
| Motion axis status | Real-time coordinate display |
| Inspection result | Organized display of measurement results with pass/fail indicators |
| Speed control | Adjustable movement speed for each axis |
