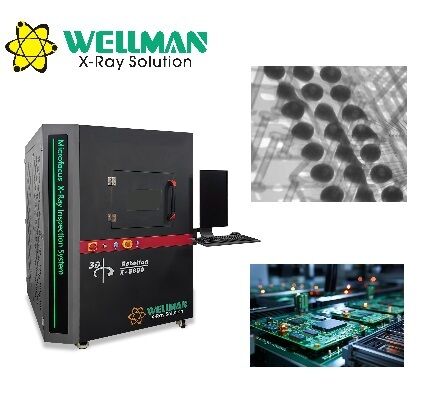

| Brand Name: | WELLMAN |
| Model Number: | X8800 |
| Payment Terms: | T/T |
| X-ray Source | ||
|---|---|---|
| Type | Open, microfocus | |
| Max Tube Voltage | 160kV | |
| Max Tube Current | 500μA | |
| Target Power | 15W | |
| Tube Power | 65W | |
| Focal Spot Size | 1μm | |
| Flat Panel Detector | ||
| Effective Area | 130mm*130mm | |
| Pixel Size | 49.5μm | |
| Resolution | 1536*1536 | |
| Frame Rate | 20fps | |
| Tiltable Angle | 60° | |
| Rotation Angle | 360° | |
| Table | ||
| Size | 400mm*400mm | |
| Detectable Area | 400mm*400mm | |
| Max Load | 10kg | |
| Equipment | ||
| Geometry Magnification | 2500X | |
| Inspection Speed | Max 3.0s/point | |
| Dimensions | 1550mm (L) * 1600mm (W) * 1700mm (H) | |
| Weight | 1800kg | |
| Power Supply | AC110-220V 50/60HZ | |
| Max Power | 1800W | |
| Industrial PC | I7 CPU, 16G RAM, 240GB SSD+1TB HDD | |
| Displayer | 24" HDMI LCD | |
| Safety Features | ||
| Radiation Leakage | No leakage, international standard: ≤1μSv/h | |
| Lead Glass Observation Window | Transparent lead glass window shields radiation for internal observation | |
| Window and Back Door Safety Interlock | X-ray tube powers off immediately when window or door opens | |
| Electromagnetic Safety Switch | Locks when X-ray is on, preventing window access | |
| Emergency Stop | Located near operation position for immediate power cutoff | |
| Tube Protection | Software prevents leaving without closing X-ray tube | |
| Function Module | Description |
|---|---|
| Operation Interface | Complete control via keyboard and mouse |
| X-ray Tube Control | Mouse-click activation with real-time voltage/current display and adjustment |
| Status Bar | Visual indication of interlock, pre-heat, and X-ray status |
| Image Effect Adjustment | Brightness, contrast and gain adjustment for optimal imaging |
| Product List | Save and recall inspection parameters for efficiency |
| Navigation Window | Click-to-move table positioning with camera guidance |
| Motion Axis Status | Real-time coordinate display |
| Inspection Results | Organized display of measurement data (voids rate, distance, area) |
| Speed Control | Adjustable movement speed for each axis (slow, normal, fast) |
