| Brand Name: | WELLMAN |

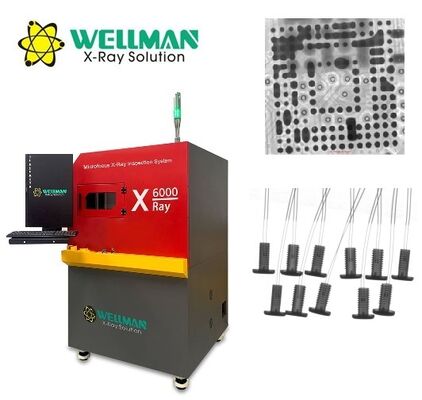

| Model Number: | X-Ray X-6000 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Type | Closed, microfocus |
| Max Tube Voltage | 90kV |
| Max Tube Current | 200μA |
| Focal Spot Size | 5μm |
| Function | Auto preheat |
| Effective Area | 130mm×130mm |
| Pixel Size | 85μm |
| Resolution | 1536×1536 |
| Frame Rate | 20fps |
| Size | 420mm×420mm |
| Detectable Area | 400mm×400mm |
| Max Load | 15kg |
| Magnification | Geometry 150X | System 1500X |
| Inspection Speed | Max 3.0s/point |
| Dimensions | 1100mm (L) × 1000mm (W) × 1600mm (H) |
| Weight | 1000kg |
| Power Supply | AC110-220V 50/60HZ |
| Max Power | 1300W |
| Industrial PC | Intel I5 CPU, 8G RAM, 240GB SSD |
| Displayer | 24" HDMI LCD |
| Radiation Leakage | No leakage, international standard: ≤1μSv/h |
| Lead Glass Observation Window | Transparent lead glass window shields radiation to observe internal status |
| Window and Back Door Safety Interlock | X-ray tube powers off immediately when opened; prevents X-ray activation when open |
| Electromagnetic Safety Switch | Locks when X-ray is on, preventing window opening |
| Emergency Stop | Located next to operation position for immediate power cutoff |
| Tube Protection | Prevents software exit without proper X-ray tube shutdown |
| Function Module | Operation |
|---|---|
| X-ray Tube Control | Mouse-click activation with real-time voltage/current display and adjustable settings |
| Status Bar | Visual indication of interlock, pre-heat, and X-ray status |
| Image Effect Adjustment | Adjustable brightness, contrast and gain for optimal imaging |
| Product List | Save and recall inspection parameters for improved efficiency |
| Navigation Window | Click-to-move functionality with camera-guided positioning |
| Motion Axis Status | Real-time coordinate display |
| Inspection Result | Organized display of measurement results (voids rate, distance, area) |
| Speed Control | Adjustable movement speed for each axis (slow, normal, fast) |
| Automatic Calculation | Rectangle-based solder ball analysis with automatic void detection and NG/OK indication |
| Distance | Vertical distance measurement from point to baseline |
| Distance Rate | Percentage ratio calculation for through-hole soldering rate |
| Angle | Angle measurement between defined rays |
| Manual Setting | Custom inspection point positioning with automatic image capture |
