| Brand Name: | WELLMAN |

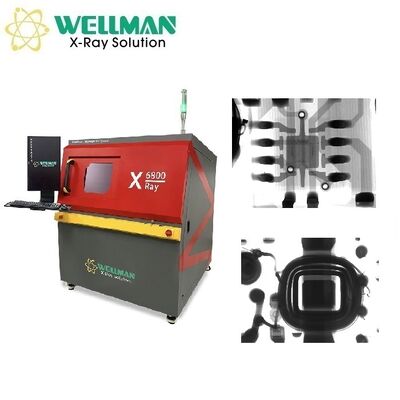

| Model Number: | X6800 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Component | Parameter | Specification |
|---|---|---|
| X-ray Source | Type | Closed, microfocus |
| Max Tube Voltage | 90kV | |
| Max Tube Current | 200μA | |
| Focal Spot Size | 5μm | |
| Function | Auto preheat | |
| Flat Panel Detector | Effective Area | 130mm×130mm |
| Pixel Size | 85μm | |
| Resolution | 1536×1536 | |
| Frame Rate | 20fps | |
| Tiltable Angle | 60° | |
| Table | Size | 530mm×530mm |
| Detectable Area | 500mm×500mm | |
| Max Load | 10kg | |
| Equipment | Magnification | Geometry 200X | System 1500X |
| Inspection Speed | Max 3.0s/point | |
| Dimensions | 1360mm (L)×1365mm (W)×1730mm(H) | |
| Weight | 1200kg | |
| Power Supply | AC110-220V 50/60HZ | |
| Max Power | 1500W | |
| Industrial PC | I5 CPU, 8G RAM, 500GB SSD | |
| Displayer | 24" HDMI LCD | |
| Safety Features | Radiation Leakage | No leakage, international standard: ≤1μSv/h |
| Lead Glass Observation Window | Transparent lead glass window shields radiation to observe inner status | |
| Window and Back Door Safety Interlock | X-ray tube powers off immediately when window or back door is opened | |
| Electromagnetic Safety Switch | Locks when X-ray is on, preventing window opening | |
| Emergency Stop | Located next to operation position, press to power off | |
| Tube Protection | Software prevents leaving without closing X-ray tube |
| Function Module | Operation | Description |
|---|---|---|
| Operation Interface | Keyboard and Mouse | Complete all operations using keyboard and mouse |
| X-ray Tube Control | Mouse Click | Click X button to turn on/off X-ray. Real-time voltage and current display with adjustable controls |
| Status Bar | Visual Indicator | Displays interlock status, pre-heat status, and X-ray status with red/green flashing |
| Image Effect Adjustment | Manual Control | Adjust brightness, contrast and gain for optimal image quality |
| Product List | Parameter Storage | Save inspection parameters for efficient recall during batch inspection |
| Navigation Window | Click to Move | Click anywhere in table photo to automatically move table to selected position |
| Motion Axis Status | Real-time Display | Shows current coordinates of all axes |
| Inspection Result | Automated Display | Displays measurement results (voids rate, distance, area, etc.) in order |
| Speed Control | Adjustable Settings | Adjust movement speed of each axis to slow, normal, or fast |
| Voids Rate Measurement | Automatic Calculation | Click two points to define rectangle, automatically measures solder ball edges, pads, and internal voids |
| Parameters Adjustment | Manual Tuning | Adjust grayscale threshold, pixel, contrast, size filtering for accurate results |
| Add Voids Manually | User Input | Draw polygons or free figures to calculate as voids |
| Save Parameters | Storage Function | Save measurement parameters for efficient product recall |
| Other Measurement Functions | Distance | Measure vertical distance from point to baseline |
| Distance Rate | Calculate percentage ratio for through-hole soldering rate measurement | |
| Angle | Measure angle between rays | |
| Radius | Measure round components (solder balls) circumference, area and radius | |
| Perimeter | Measure square components length, width and area |
