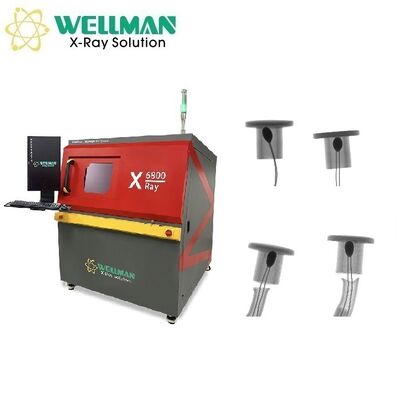

| Brand Name: | WELLMAN |
| Model Number: | X6800 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Component | Parameter | Specification |
|---|---|---|
| X-ray Source | Type | Closed, microfocus |
| Max Tube Voltage | 90kV | |
| Max Tube Current | 200μA | |
| Focal Spot Size | 5μm | |
| Flat Panel Detector | Effective Area | 130mm×130mm |
| Pixel Size | 85μm | |
| Resolution | 1536×1536 | |
| Frame Rate | 20fps | |
| Table | Size | 530mm×530mm |
| Detectable Area | 500mm×500mm | |
| Max Load | 10kg | |
| Equipment | Magnification | Geometry 200X | System 1500X |
| Inspection Speed | Max 3.0s/point | |
| Dimensions | 1360mm (L)×1365mm (W)×1730mm(H) | |
| Weight | 1200kg | |
| Power Supply | AC110-220V 50/60HZ | |
| Max Power | 1500W | |
| Safety Features | Radiation Leakage | No leakage, international standard: ≤1μSv/h |
| Lead Glass Window | Transparent lead glass shields radiation for internal observation | |
| Safety Interlock | X-ray tube powers off immediately when window or back door opens | |
| Electromagnetic Safety Switch | Locks when X-ray is on, preventing window opening | |
| Emergency Stop | Located near operation position for immediate power cutoff | |
| Tube Protection | Software prevents leaving without closing X-ray tube |
| Function Module | Operation | Description |
|---|---|---|
| Operation Interface | Keyboard and Mouse | Complete all operations using keyboard and mouse controls |
| X-ray Tube Control | Mouse Click | Toggle X-ray on/off, adjust voltage and current via slider or direct input |
| Status Bar | Visual Indicator | Displays interlock status, pre-heat status, and X-ray status with red/green flashing |
| Image Adjustment | Parameter Control | Adjust brightness, contrast and gain for optimal image quality |
| Product List | Parameter Storage | Save and recall inspection parameters for repeated product testing |
| Navigation Window | Click to Move | Table automatically moves to clicked position on camera image |
| Voids Rate Measurement | Automatic Calculation | Automatically detects and measures solder ball voids, calculates rate, area, circumference |
| Parameter Adjustment | Manual Control | Adjust grayscale threshold, pixel, contrast, and size filtering parameters |
| Manual Void Addition | Free Drawing | Draw polygons or freeform shapes to include as voids in calculations |
| Measurement Functions | Multiple Tools | Distance, distance rate, angle, radius, and perimeter measurement capabilities |
