| Brand Name: | WELLMAN |
| Model Number: | XC - 01 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | Worldwide supply |

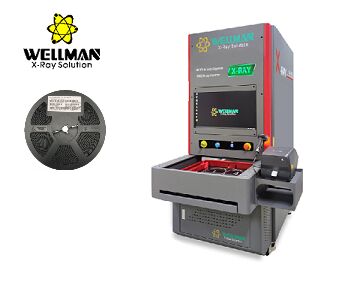

The X-ray tube emits radiation through reels on the reel table. The flat panel detector captures raw images, which are processed and counted by the IPC host.
X-ray and AI technologies enable component counting with an accuracy of 99.99%.
Counting four 7" reels or one 17" reel in less than 10 seconds.
80kv Japan Hamamatsu closed tube, offering the longest lifetime and maintenance-free operation.
The system automatically scans codes, prints labels, and uploads data to the system after counting.
Supporting MES, ERP, WMS, and other management systems.
| X-ray Source | |
|---|---|
| Type | Integrated, microfocus |
| Max Tube Voltage | 80kV |
| Max Tube Current | 700μA |
| Focal Spot Size | 30μm |
| Flat Panel Detector | |
| Type | Super definition digital FPD |
| Effective Area | 430mm × 430mm |
| Pixel Size | 139μm |
| Resolution | 3072 × 3072 |
| Reel/Tray Counting | |
| Max Size | 17" (430mm) |
| Max Thickness | 88mm |
| Min Parts Size | 01005 |
| Speed | 7-10s |
| Accuracy | 01005 ≥ 99.98%, 0201 & above ≥ 99.99% |
| Equipment | |
| Dimensions | 1000mm (L) × 1300mm (W) × 1820mm (H) |
| Weight | 580kg |
| Power Supply | AC110-220V 50/60HZ |
| Max Power | 800W |
| Industrial PC | I7 CPU, 16G RAM, 256G SSD+4T HDD |
| Display | 24" HDMI LCD |
Our counting software utilizes a powerful AI deep learning algorithm that automatically identifies components and applies optimized counting algorithms without manual configuration.
No manual binding of components to specific algorithms required. AI automatically identifies components and applies the optimal algorithm. The algorithm learns and analyzes key component data including:
| Reel Size | Parts Size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7" (180mm) | 01005 | 40000 | 99.98% | 9-10s |
| 7" (180mm) | 0201 | 20000 | 99.99% | 8-9s |
| 7" (180mm) | 0402 | 10000 | 99.99% | 7-8s |
| 7" (180mm) | 0603 | 5000 | 99.99% | 7-8s |
| 10" (254mm) | 1206 | 5000 | 99.99% | 7-8s |
| 15" (380mm) | 1206 | 10000 | 99.99% | 7-8s |
