Hamamatsu X Ray Source
>
110kV Microfocus XRay Source 120° Wide Beam NDT PCB Inspection

110kV Microfocus XRay Source 120° Wide Beam NDT PCB Inspection

Brand Name: HAMAMATSU
Model Number: L12531
MOQ: 1
Payment Terms: T/T
Detail Information
Place of Origin:
JAPAN
Certification:
CE, FDA
Target Material:
Tungsten
Brand Name:
Hamamatsu
Place Of Origin::
JAPAN
Communication Method:
Interface: RS-232C(9-pin D-sub Connector)
Highlight:

110kV microfocus X-ray source

,

120° wide beam NDT inspection

,

Hamamatsu X-ray source for PCB

Product Description
HAMAMATSU L12531 Microfocus X-Ray Source
110kV Microfocus X-Ray Source with 120° Wide Beam for NDT and PCB Inspection applications
Key Features
  • Wide X-ray beam angle of 120° for comprehensive coverage
  • High resolution of 2 μm at 2 W with transmission target
  • High magnification with 1 mm FOD (Focus to Object Distance)
  • Maintenance-free sealed type microfocus X-ray source
Applications
  • Non-destructive testing and inspection
  • X-ray CT scanning and analysis
Applicable Objects
  • Electronic components and assemblies
  • Printed circuit boards (PCBs)
  • Plastic components and materials
  • Metal components and structures
110kV Microfocus XRay Source 120° Wide Beam NDT PCB Inspection 0

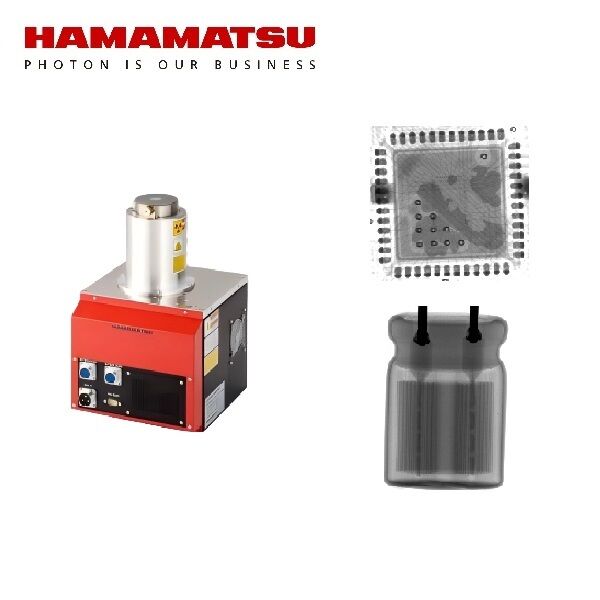

Microfocus X-Ray Source Close-up View
110kV Microfocus XRay Source 120° Wide Beam NDT PCB Inspection 1
120° Wide Beam Angle Demonstration
110kV Microfocus XRay Source 120° Wide Beam NDT PCB Inspection 2
High Resolution Imaging Example
110kV Microfocus XRay Source 120° Wide Beam NDT PCB Inspection 3
Maintenance-free Design Features
