| Brand Name: | Hamamatsu |
| Model Number: | 130kv |
| Payment Terms: | T/T |

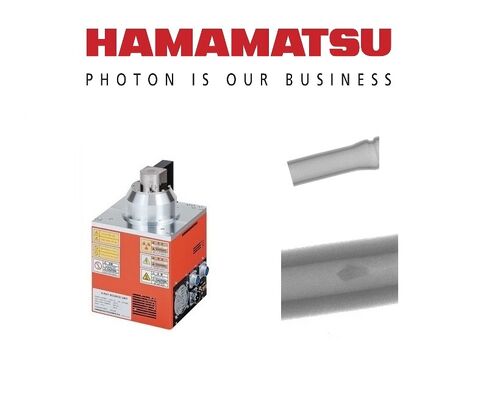

High-performance closed-type X-ray tube delivering continuous and stable output for industrial applications.
| Parameter | Description / Value | Unit |
|---|---|---|
| Input Voltage (DC) | +24 | V |
| Power Consumption (Max.) | 96 | W |
| Operating Ambient Temperature | +10 to +40 | °C |
| Storage Temperature | 0 to +50 | °C |
| Operating and Storage Humidity | Below 85 (No Condensation) | % |
| Weight | Approx. 10 | kg |
| Conformance Standards | CE(EMC: IEC 61326-1, Group1, Class A) | - |
| Operation | Continuous | - |
| High Voltage Power Supply | Built-in | - |
| Parameter | Description / Value | Unit |
|---|---|---|
| X-ray Tube | Sealed Type | - |
| X-ray Tube Cooling Method | Convection Cooling | - |
| X-ray Tube Window Material / Thickness | Beryllium / 150 | µm |
| Target Material | Tungsten | - |
| Tube Voltage Operational Range | 20 to 90 | kV |
| Tube Current Operational Range | 10 to 200 (8 W Max) | μA |
| Maximum Output | 8 | W |
| X-ray Focal Spot Size | 7 (5 µm at 4 W) | µm |
| X-ray Beam Angle (Coned) | 39 | degrees |
| Focus to Object Distance (FDF) | 9.5 | mm |
| Parameter | Description / Value |
|---|---|
| Function | Tube Voltage and Tube Current Preset / Auto Warm-up |
| Protection | Interlock |
| External Control | RS-232C |
| Applicable OS | Windows 2000 Professional, XP Professional |
| Computer Operating Conditions | CPU: Intel Pentium or Higher, Memory: 64 MB or More |
