XRay Inspection Machine 5μm Focal Spot for Electronics Production Line

Brand Name:	WELLMAN
Model Number:	X6000
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE, FDA

Warranty:

12 Months

Name:

Wellman X-ray Inspection System X6000

Type:

Closed, Microfocus

Max Tube Voltage:

Max Tube Current:

200μA

Focal Spot Size:

Effective Area:

130mm*130mm

Packaging Details:

Wooden case

Highlight:

XRay inspection machine for electronics

5μm focal spot XRay machine

electronics production line XRay inspection

Product Description

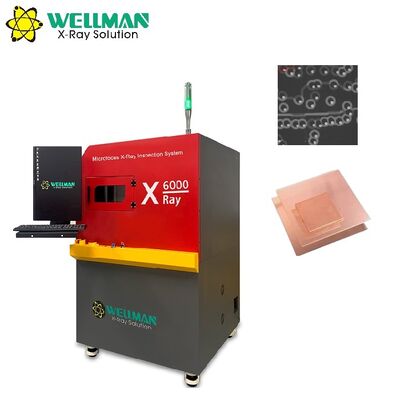

WELLMAN X6000 Auto Navigation X-Ray Inspection System

Advanced automated batch inspection equipment with high-precision imaging for BGA solder voids and PCB through-holes in electronics production lines.

Key Advantages

Next Generation 5 Inch HD Digital Flat Panel Detector (FPD)
Optional 360 Degree Rotary Jig for Multi-Angle Inspection
User-Friendly Operation with Only 2 Hours Training Required
3-Axis Linkage System with Adjustable Movement Speed
Enclosed X-ray Tube with >10,000 Hours Operational Life (Maintenance-Free)
Auto-Navigation Window - Table Shifts to Clicked Position
420×420mm Work Table with 15KG Load Capacity
Programmable Inspection Processes Enable Automated Batch Inspection

Technical Specifications

X-ray Source

Type	Closed, microfocus
Max Tube Voltage	90kV
Max Tube Current	200μA
Focal Spot Size	5μm
Function	Auto Preheat

Flat Panel Detector

Effective Area	130mm×130mm
Pixel Size	85μm
Resolution	1536×1536
Frame Rate	20fps

Work Table

Size	420mm×420mm
Detectable Area	400mm×400mm
Max Load	15kg

Equipment Parameters

Magnification	Geometry 150X \| System 1500X
Inspection Speed	Max 3.0s/point
Dimensions	1100mm (L) × 1000mm (W) × 1600mm (H)
Weight	1000kg
Power Supply	AC110-220V 50/60HZ
Max Power	1300W
Industrial PC	Intel I5 CPU, 8G RAM, 240GB SSD
Displayer	24" HDMI LCD

Safety Features

Radiation Leakage	No leakage (≤1μSv/h, international standard)
Lead Glass Observation Window	Transparent lead glass shields radiation while allowing internal observation
Window/Door Safety Interlock	X-ray automatically powers off when window/door is opened
Electromagnetic Safety Switch	Locks observation window when X-ray is active
Emergency Stop	Instant power-off button near operation position
Tube Protection	Software prevents X-ray tube from being left on

Software Capabilities

Basic Operation

Full keyboard and mouse control for all functions, including X-ray tube activation and parameter adjustment.

Measurement Tools

Comprehensive measurement functions including distance, angle, radius, perimeter, and distance rate calculations for through-hole soldering analysis.

Automated Inspection

Three operation modes: manual setting, array scanning, and auto recognition for efficient batch inspection.

Image Processing

Adjustable brightness, contrast, and gain to achieve optimal image quality. Save and retrieve inspection parameters for repeated inspections.

Voids Rate Measurement

Automatically calculates solder ball void rate, area and circumference, identifies defects, and supports manual void marking as well as parameter saving to ensure stable and consistent results.

Working Principle

X6000 X-ray inspection system working principle

Application Examples

X6000 inspection application example 1

X6000 inspection application example 2
