| Brand Name: | Wellman |

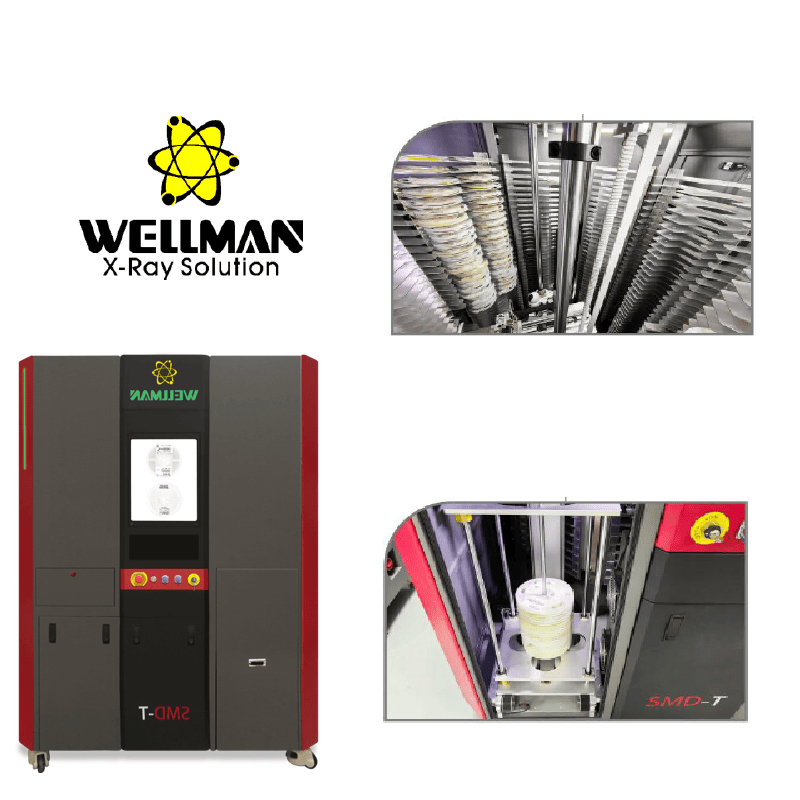

| Model Number: | SMD-T |
| MOQ: | 1 |
| Price: | 25000 USD-30000 USD |
| Payment Terms: | T/T |
| Supply Ability: | 8 units 90 days |
| Material type | SMD reel |
|---|---|
| Batch loading | Yes |
| Code scanning | Barcode and QR code |
| Standard capacity | 750pcs (7"&10mm reel) |
|---|---|
| Capacity after heightening | 1120pcs (7"&10mm reel) |
| Single reel cycle time | 12-15s |
| Cycle time after heightening | 12-16s |
| Mini height | 5mm |
| Max height | 25mm (customizable) |
| Max weight | 3KG (customizable) |
| Multi-tower connection | Support |
|---|---|
| WMS management | Yes |
| Temperature and humidity warning | Support |
| Operation system | Windows 10 |
| Chip mounter communication | Optional |
| Management systems connection | MES, ERP, WMS etc. |
| Dimensions | 1450mm (L) × 1900mm (W) × 2050mm (H) |
|---|---|
| Height after heightening | 2700mm |
| Weight | 1500KG |
| Weight after heightening | 2000KG |
| Power supply | 220VAC, 16A |
| Power | 3000W |
| Industrial PC | I5 CPU, 8G RAM, 240G SSD+1T HDD |
| Displayer | 17" touch screen |
| Working temperature | 0 - 40°C |
| Working humidity | 10 - 85% |
| Noise | 50dB |
| Air pressure | 0.5-0.7mpa |
| N2 interface | Support |
| Material management | Transform the unique code for new incoming material, add to the total material table |
|---|---|
| Tower setup | Set up new SMD tower and its locations |
| Supplier info | Supplier info management, add, delete or search |
| Customer Info | Customer info management, add, delete or search |
| Inventory management | Intelligent management of overall inventory |
| Inventory freeze | Freeze specific locations |
| Inventory verification | Take stock and update the data of stored reels |
| Scan the code and load | Scan the reel code and put into location |
| Location parameter table | Record the coordinate and size info of each location |
|---|---|
| Current SMD tower table | Record the status of each location of the current SMD tower |
| In & out record | Record all records of material bin and material tray for traceability |
| Operation record | Record initialization, power on and off, alarm and other operations |
| Initialization | Initialize when the machine power on |
|---|---|
| Single reel in | Put the reel on the designated position, load it in the tower after scanning code |
| Single reel out | Search for the specified reel, send it out |
| Batch loading | Load the reels into the tower in batches automatically |
| Place production orders | According to the production demand, upload the P/N or unique ID to the system for analysis, then lock the reels, and inform each SMD tower to unload |
| Unload to order | After receiving the production order of the system, unload the reels in batches |
| Lock expired reels | Lock the expired reels, prevent them from entering the production process |
