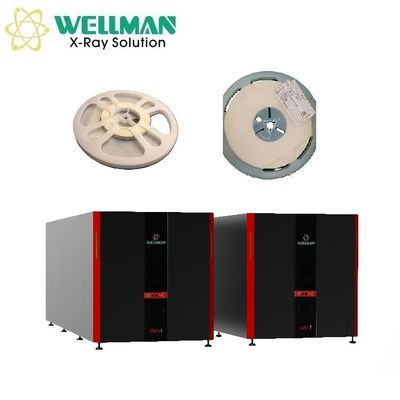

| Brand Name: | WELLMAN |
| Model Number: | SMD-A |
| MOQ: | 1 |
| Payment Terms: | T/T |
1. Workflow
2. Our Advantages
2.1. Customized according to customer's site and needs, it has higher space utilization than SMD Tower.
2.2. Batch automatic scanning code & loading, compatible with barcode/QR code.
2.3. Fully automatic in and out of storage, support 7'' to 15'' reels.
2.4. Support MES, ERP, WMS, and other management systems connection.
2.5. Manage and monitor SMD inventory to ensure inventory accuracy and avoid production interruption.
2.6. Provide a controlled environment for SMD components, monitor the life of the reel.
2.7. Back up and store all data automatically, supports quick search by scanning code, ensure the traceability of SMD components.
2.8. Can be customized according to customer requirements, and provide software technical support.
3.Software Function
|
Warehouse Management System
|
Material management |
Transform the unique code for new incoming material, add to the total material table |
|
Tower setup |
Set up new Intelligent Warehouse and its locations |
|
|
Supplier info |
Supplier info management, add, delete or search |
|
|
Customer info |
Customer info management, add, delete or search |
|
|
Inventory management |
Intelligent management of overall inventory |
|
|
Inventory freeze |
Freeze specific locations |
|
|
Inventory verification |
Take stock and update the data of stored reels |
|
|
Scan the code and load |
Scan the reel code and put into location |
|
|
Intelligent Warehouse database
|
Location parameter table |
Record the coordinate and size info of each location |
|
Current Intelligent Warehouse table |
Record the status of each location of the current Intelligent Warehouse |
|
|
In & out record |
Record all records of material bin and material tray for traceability |
|
|
Operation record |
Record initialization, power on and off, alarm and other operations |
|
|
Intelligent Warehouse function
|
Initialization |
Initialize when the machine power on |
|
Single reel in |
Put the reel on the designated position, load it in the Warehouse after scanning code |
|
|
Single reel out |
Search for the specified reel, send it out |
|
|
Batch loading |
Load the reels into the Warehouse in batches automatically |
|
|
Place production orders |
According to the production demand, upload the P/N or unique ID to the system for analysis, then lock the reels, and inform each Intelligent Warehouse to unload |
|
|
Unload to order |
After receiving the production order of the system, unload the reels in batches |
|
|
Lock expired reels |
Lock the expired reels, prevent them from entering the production process |
4. Hardware Parameters
|
In and out of the storage
|
Code scanning |
Barcode and QR code |
|
Material type |
SMD reel |
|
|
Batch loading |
support |
|
|
Inbound and outbound efficiency |
About 10 s / reel |
|
|
Reel
|
Applicable reel |
7-15 inches |
|
Applicable reel thickness |
5-50 mm (customizable) |
|
|
Max weight |
3KG (customizable) |
|
|
Standard capacity |
10,000 pcs (7"&10mm reel) |
|
|
system
|
Multi-warehouse connection |
support |
|
WMS Management |
yes |
|
|
Temperature and humidity warning |
support |
|
|
operating system |
Windows 10 |
|
|
Chip mounter communication |
Optional |
|
|
Management systems connection |
Support MES , ERP , WMS , etc. |
|
|
Equipment
|
Dimensions |
10000mm (L) * 2000mm (W) * 2800mm (H) customized |
|
weight |
8000KG customized |
|
|
power supply |
220V customization |
|
|
power |
over 3000W Customized |
|
|
Industrial PC |
I 7 CPU, 16 GB RAM, 1TB SSD |
|
|
Displayer |
17” touch screen |
|
|
Working temperature |
15-30°C |
|
|
Working humidity |
10- 85 % |
|
|
Noise |
50dB |
|
|
Air pressure |
0.5-0.7mpa |
|
|
N2 interface |
support |
