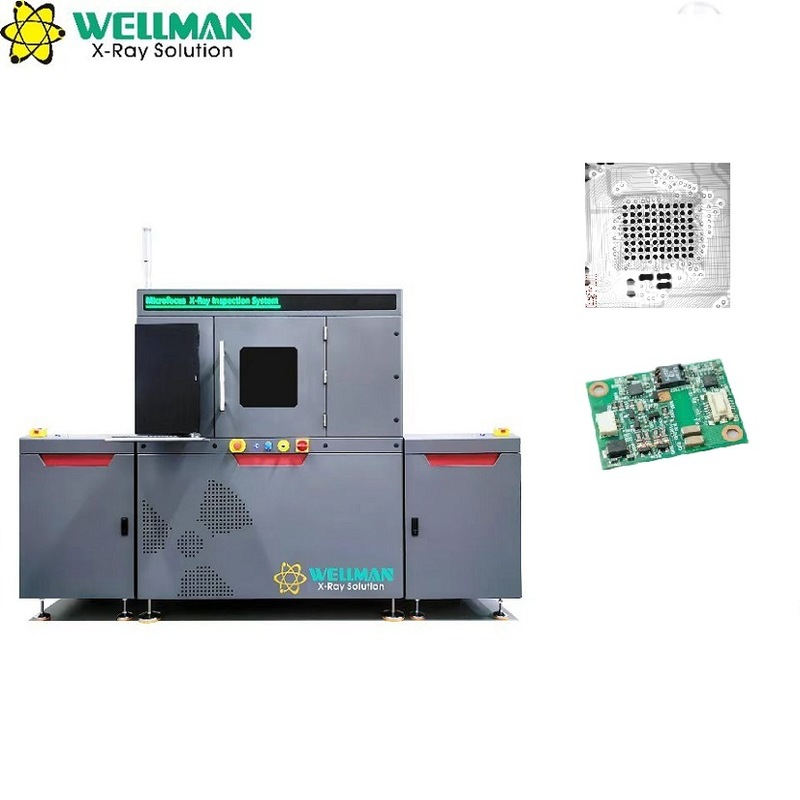

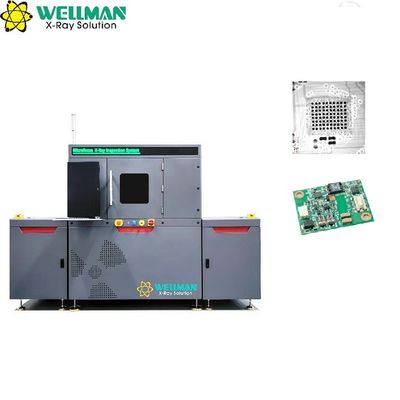

| Brand Name: | WELLMAN |
| Model Number: | IL-3000 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| X-ray Source | |
|---|---|
| Type | Closed, microfocus |
| Max tube voltage | 90kV |
| Max tube current | 200μA |
| Focal spot size | 5μm |
| Function | Auto preheat |
| Flat Panel Detector | |
|---|---|
| Brand | IRay |
| Effective area | 130mm * 130mm |
| Pixel size | 85μm |
| Resolution | 1536 * 1536 |
| Frame rate | 20fps |
| Tiltable angle | 60° |
| Inspection System | |
|---|---|
| Transmission | Belt |
| Motor | Panasonic servo motor |
| Detectable area | Length 520mm, width 80-430mm adjustable |
| Max load | 10kg |
| Equipment Specifications | |
|---|---|
| Magnification | Geometry 200X | System 1500X |
| Inspection speed | Max 3.0s/point |
| Dimensions | 2600mm (L) * 1300mm (W) * 1800mm (H) |
| Host machine dimensions | 1400mm (L) * 1300mm (W) * 1800mm (H) |
| Weight | 2200kg |
| Power supply | AC110-220V 50/60HZ |
| Max power | 3000W |
| Industrial PC | I7 CPU, 16G RAM, 240GB SSD + 1T HDD |
| Displayer | 24" HDMI LCD |
