X Ray Inline Inspection Machine For SMD BGA Real Time Quality Control

Brand Name:	WELLMAN
Model Number:	IL-3000
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE, FDA

Type:

Microfocus

Max Tube Voltage:

Max Tube Current:

200μA

Focal Spot Size:

Detectable Area:

Length 520mm, Width 80-430mm Adjustable

Packaging Details:

Wooden case

Highlight:

X Ray inline inspection machine

SMD BGA inspection machine

real time X Ray inspection

Product Description

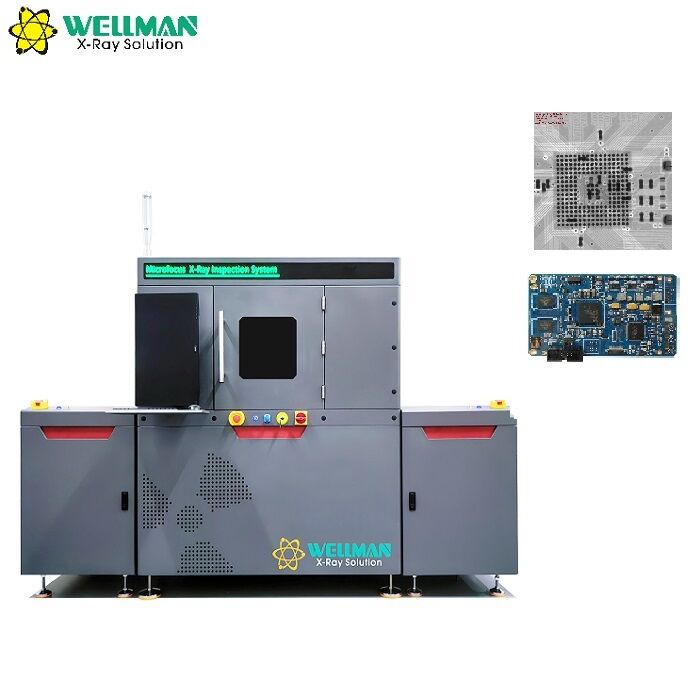

Wellman In-line X-ray Inspection System IL-3000

Advanced X-ray inspection machine for SMD BGA real-time quality control with automated inline processing capabilities.

Key Advantages

Closed-type X-ray tube: over 10,000 hours of service life and maintenance-free performance
New-generation 5" HD digital flat panel detector (FPD)
Intuitive operation for quick defect identification (only 2 hours of training needed)
Intelligent auto-navigation window enables automatic table positioning at clicked coordinates
Conveyor belt transmission with lead screw and guide rail width adjustment, max adjustable width of 620mm
6-axis servo motion system realizes synchronized movement of X-ray tube and flat panel detector
Customizable inspection programs support automatic mass production testing

Hardware Specifications

X-ray Source

Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector

Brand	IRay
Effective area	130mm * 130mm
Pixel size	85μm
Resolution	1536 * 1536
Frame rate	20fps
Tiltable angle	60°

Inspection System

Transmission	Belt
Motor	Servo motor
Detectable area	Length 520mm, width 80-430mm adjustable
Max load	10kg

Equipment Specifications

Magnification	Geometry 200X \| System 1500X
Inspection speed	Max 3.0s/point
Dimensions	2600mm (L) * 1300mm (W) * 1800mm (H)
Host machine dimensions	1400mm (L) * 1300mm (W) * 1800mm (H)
Weight	2200kg
Power supply	AC110-220V 50/60HZ
Max power	3000W
Industrial PC	I7 CPU, 16G RAM, 240GB SSD + 1T HDD
Displayer	24" HDMI LCD

Working Principle

Safety Features

Electromagnetic safety switch locks when X-ray is active
Emergency stop button near operation position
Radiation leakage: No leakage (≤1μSv/h - international standard)
Radiation-shielded transparent lead glass window for secure internal observation
Dual safety interlock mechanism for viewing window and rear cabinet door
Built-in X-ray tube protection prohibits exiting software without powering off the tube

Software Capabilities

Function Module	Operation
X-ray tube control	Mouse-click operation with real-time voltage/current display and adjustment
Status bar	Visual indicators for interlock, pre-heat, and X-ray status
Image effect adjustment	Customizable brightness, contrast and gain settings
Product list	Save and recall inspection parameters for efficiency
Navigation window	Click-to-move functionality for precise positioning
Motion axis status	Real-time coordinate display
Inspection results	Clear display of measurement data with pass/fail indicators
Speed control	Adjustable movement speed for each axis

Voids Rate Measurement

Automatic calculation of solder ball voids rate, area, circumference
Adjustable parameters for precise measurement (grayscale threshold, pixel, contrast)
Manual void addition via polygon/freehand drawing
Parameter saving for consistent inspection of identical products
