| Brand Name: | Wellman |
| Model Number: | X6800A |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 5 units 45 days |

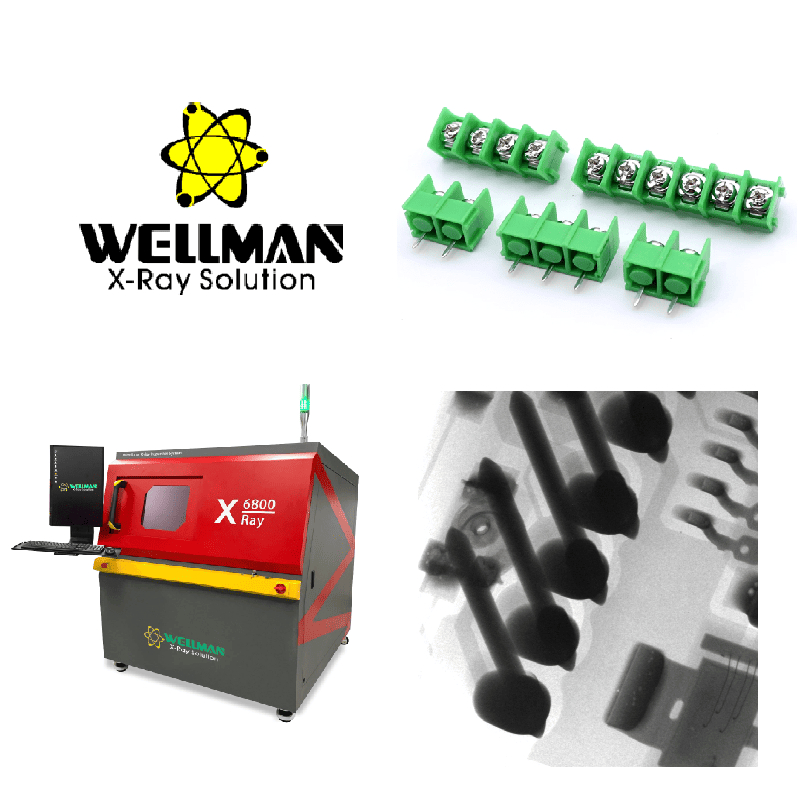

The SMT X-ray Inspection Machine X6800A provides high-precision inspection capabilities for surface mount technology applications with advanced imaging and automation features.
| Type | Closed, microfocus |
| Max tube voltage | 100kV |
| Max tube current | 200μA |
| Focal spot size | 4μm |
| Function | Auto preheat |
| Effective area | 130mm*130mm |
| Pixel size | 85μm |
| Resolution | 1536*1536 |
| Frame rate | 20fps |
| Tiltable angle | 60° |
| Size | 530mm*530mm |
| Detectable area | 500mm*500mm |
| Max load | 10kg |
| Magnification | Geometry 200X | System 1500X |
| Inspection speed | Max 3.0s/point |
| Dimensions | 1360mm (L) * 1365mm (W) * 1630mm (H) |
| Weight | 1350kg |
| Power supply | AC110-220V 50/60HZ |
| Max power | 1500W |
| Industrial PC | I5 CPU, 8G RAM, 500GB SSD |
| Displayer | 24" HDMI LCD |
| Function Module | Operation |
|---|---|
| X-ray tube control | Mouse-click operation with real-time voltage/current display and adjustment |
| Status bar | Visual indicators for interlock, pre-heat, and X-ray status |
| Image adjustment | Adjustable brightness, contrast and gain for optimal imaging |
| Product list | Save and recall inspection parameters for efficiency |
| Navigation window | Click-to-move table positioning |
| Motion axis status | Real-time coordinate display |
| Inspection results | Organized display of measurement data with pass/fail indicators |
| Speed control | Adjustable axis movement speeds (slow/normal/fast) |
| Voids rate measurement | Automatic calculation of solder ball voids with parameter adjustment |
| Other measurements | Distance, angle, radius, perimeter, and area calculations |
| Automatic inspection | Manual point setting, array inspection, and automatic feature recognition |
