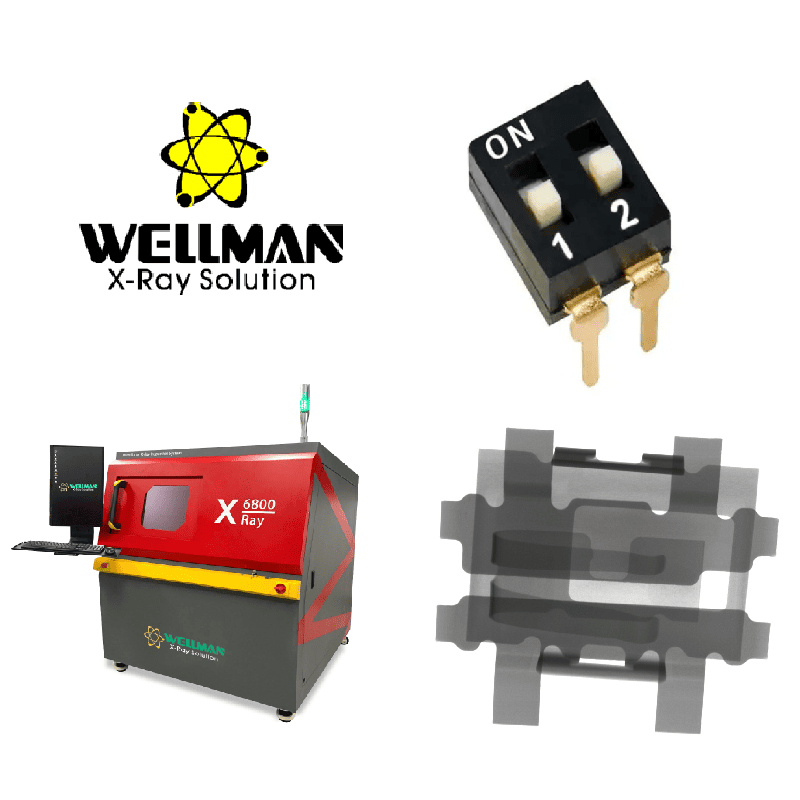

Name: Automated 110kV 4μM SMT X Ray Inspection Equipment With Tiltable FPD
Brand: SHENZHEN WEIMING PHOTOELECTRIC CO.,LTD.
SKU: X6800A
Availability: InStock

Brand Name:	Wellman
Model Number:	X6800A
MOQ:	1
Payment Terms:	T/T
Supply Ability:	5 units 45 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE FDA

Type:

Closed, Microfocus

Max Tube Voltage:

130kV

Max Tube Current:

300μA

Focal Spot Size:

5μm

Tiltable Angle:

60°

Packaging Details:

Wooden case

Supply Ability:

5 units 45 days

Highlight:

Automated SMT X Ray Inspection

Tiltable FPD pcb xray machine

Tiltable FPD SMT X Ray Inspection

Product Description

110kV 4μm SMT X-ray Inspection Machine X6800A

Working Principle

Key Advantages

Closed-type X-ray tube with 10,000+ hour lifespan and maintenance-free operation
New-generation 5-inch high-definition (HD) digital flat panel detector (FPD)
Tiltable FPD (60° tilt angle) maintains full magnification capabilities
Automatic navigation window - table moves to selected position with single click
Large 530*530mm inspection table with 10kg load capacity
5-axis linkage system with customizable speed settings
Programmable workflows for automated batch inspection
Intuitive interface - operators can master system within 2 hours

Hardware Specifications

X-ray Source
Type	Closed, microfocus
Max tube voltage	110kV
Max tube current	200μA
Focal spot size	4μm
Function	Auto preheat

Flat Panel Detector
Effective area	130mm*130mm
Pixel size	85μm
Resolution	1536*1536
Frame rate	20fps
Tiltable angle	60°

System Specifications
Magnification	Geometry 200X \| System 1500X
Inspection speed	Max 3.0s/point
Dimensions	1360mm (L) * 1365mm (W) * 1630mm (H)
Weight	1350kg
Power supply	AC110-220V 50/60HZ
Max power	1500W

Safety Features

Radiation leakage: ≤1μSv/h (meets international standards)
Transparent lead glass observation window
Window/door safety interlock - automatic X-ray power-off when opened
Electromagnetic safety switch - locks when X-ray is active
Emergency stop button near operation position
Software protection against accidental X-ray tube activation

Software Capabilities

Function Module	Operation
X-ray tube control	Mouse-click operation with real-time voltage/current display
Image adjustment	Brightness, contrast and gain controls for optimal imaging
Product list	Save and recall inspection parameters
Navigation window	Click-to-move table positioning
Voids rate measurement	Automatic solder ball voids calculation
Automatic inspection	Manual point setting, array inspection, and feature recognition
