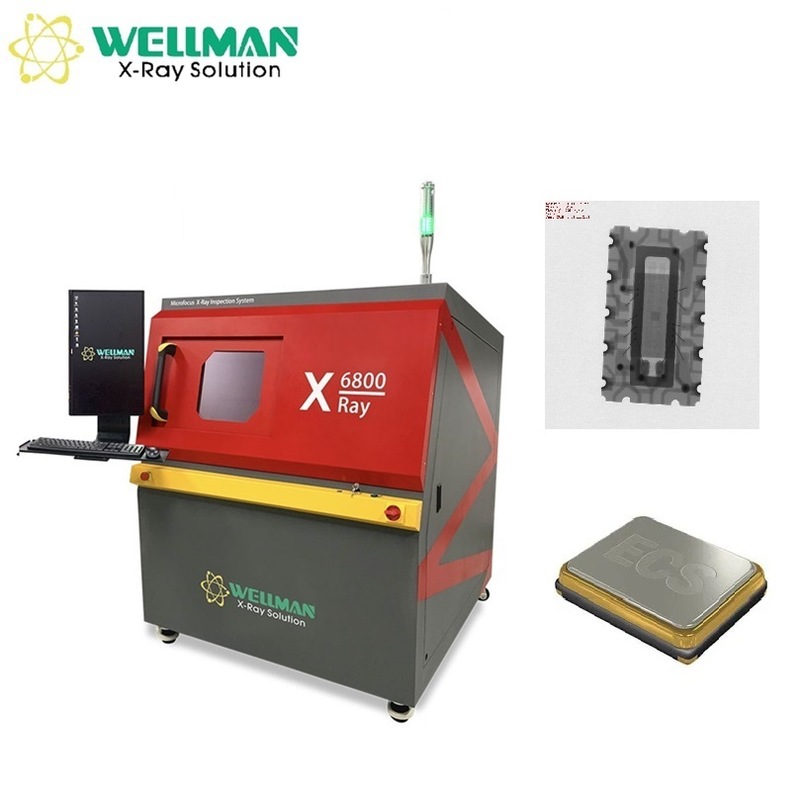

Name: Wellman X6800 PCB X Ray Machine With 530mm Table And 10KG Load
Brand: SHENZHEN WEIMING PHOTOELECTRIC CO.,LTD.
SKU: X6800
Price: 39,000.00 USD
Availability: InStock

Brand Name:	Wellman
Model Number:	X6800
MOQ:	1
Price:	28000-50000 USD
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE、FDA

Type:

Closed,microfocus

Max Tube Voltage:

90kv

Effective Area:

130mm*130mm

Pixel Size:

85μm

Resolution:

1536*1536

Max Tube Current:

200μA

Packaging Details:

Wooden case

Highlight:

530mm Table PCB X Ray Machine

PCB X Ray Machine 10KG Load

530mm Table Electronic X Ray Machine

Product Description

X-ray Inspection System – PCB/SMT Defect Detection + 60° Tiltable FPD

The Wellman X-ray Inspection System X6800 delivers advanced PCB/SMT defect detection, paired with a maintenance-free X-ray tube that supports over 10,000 hours of operation.

Key Advantages

530*530mm table featuring a 10KG load capacity
5-axis linkage system with adjustable speed
Closed-type X-ray tube offering over 10,000 hours of lifetime and maintenance-free operation
New-generation 5" HD digital flat panel detector (FPD)
Programmable inspection procedures for automated batch inspection
Intuitive operation with quick defect identification (2-hour training required)
Tiltable FPD (60° range) maintains magnification without compromise
Automatic navigation window - table moves to clicked locations

Hardware Specifications

X-ray Source

Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector

Effective area	130mm*130mm
Pixel size	85μm
Resolution	1536*1536
Frame rate	20fps
Tiltable angle	60°

Table Specifications

Size	530mm*530mm
Detectable area	500mm*500mm
Max load	10kg

Equipment Specifications

Magnification	Geometry 200X \| System 1500X
Inspection speed	Max 3.0s/point
Dimensions	1360mm (L) * 1365mm (W) * 1730mm (H)
Weight	1200kg
Power supply	AC110-220V 50/60HZ
Max power	1500W
Industrial PC	I5 CPU, 8G RAM, 500GB SSD
Displayer	24" HDMI LCD

Working Principle

Safety Features

Electromagnetic safety switch locks when X-ray is active
Radiation leakage: None detected (≤1μSv/h, meeting international standards)
Emergency stop button positioned near the operating area
Tube protection prevents leaving software without closing X-ray
Transparent lead glass observation window for safe internal viewing
Window and back door safety interlock system

Software Capabilities

Core Functions

Mouse/keyboard controlled X-ray tube operation with real-time voltage/current display
Status bar showing interlock, pre-heat, and X-ray status
Adjustable image brightness, contrast and gain
Product list for saving and recalling inspection parameters
Navigation window for precise table positioning
Real-time motion axis coordinate display
Inspection results display (voids rate, distance, area, etc.)
Adjustable axis movement speeds (slow/normal/fast)

Voids Rate Measurement

Automatic calculation of solder ball voids with NG/OK indication
Manual void addition via polygon/freehand drawing
Parameter saving for consistent product inspection
Adjustable grayscale threshold, pixel, contrast, and size filtering

Measurement Functions

Radius measurement for circular components
Perimeter measurement for square components
Distance measurement between points
Distance rate calculation for through-hole soldering
Angle measurement between points

Automatic Inspection

Automatic feature recognition for distinctive inspection points
Manual inspection point setting
Array inspection for regular patterns
