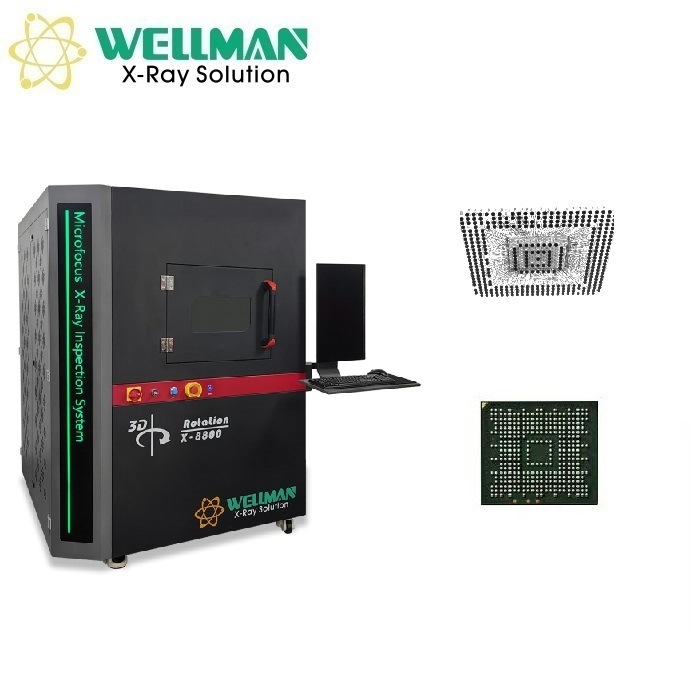

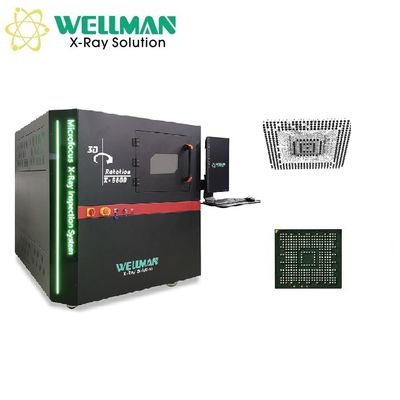

| Brand Name: | Wellman |
| Model Number: | X8800 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| X-ray Source | ||
|---|---|---|
| Brand | Japan Hamamatsu | |
| Type | Closed, microfocus | |
| Max tube voltage | 90KV | |
| Max tube current | 200μA | |
| Focal spot size | 5μm | |
| Function | Auto preheat | |
| Flat Panel Detector | ||
| Effective area | 130mm*130mm | |
| Pixel size | 85μm | |
| Resolution | 1536*1536 | |
| Frame rate | 20fps | |
| Tiltable angle | ±45° | |
| Rotation angle | 360° | |
| Table | ||
| Size | 400mm*400mm | |
| Detectable area | 400mm*400mm | |
| Max load | 10kg | |
| Equipment | ||
| Magnification | Geometry | 200X |
| System | 1500X | |
| Inspection speed | Max 3.0s/point | |
| Dimensions | 1550mm(L)*1600mm(W)*1700mm(H) | |
| Weight | 1800kg | |
| Power supply | AC110-220V 50/60HZ | |
| Max power | 1800W | |
| Industrial PC | 15 CPU, 8G RAM, 240GB SSD | |
| Displayer | 24"HDMI LCD | |
| Function Module | Description |
|---|---|
| Operation | Complete control via keyboard and mouse |
| X-ray tube control | Mouse-click operation with real-time voltage/current display and adjustment |
| Status bar | Visual indicators for interlock, pre-heat, and X-ray status |
| Image adjustment | Customizable brightness, contrast and gain settings |
| Product list | Save and recall inspection parameters for efficiency |
| Navigation window | Click-to-move table positioning |
| Motion axis status | Real-time coordinate display |
| Inspection result | Measurement results display (voids rate, distance, area, etc.) |
| Speed control | Adjustable movement speed for each axis |
