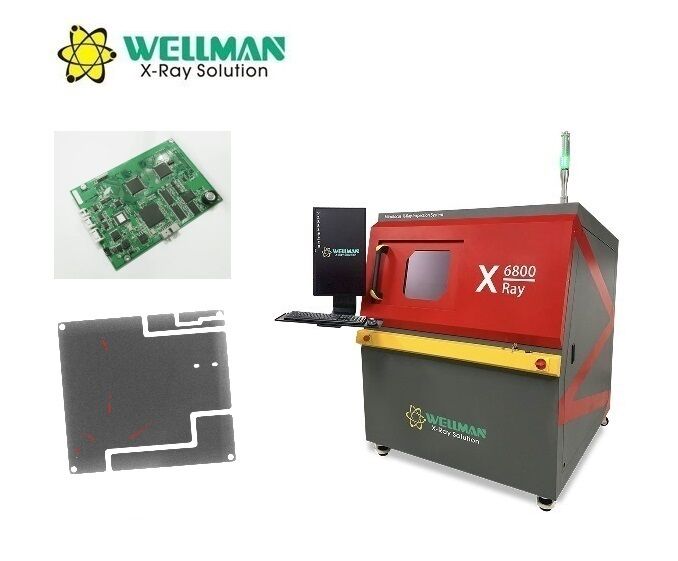

X ray nondestructive bga testing system with 13cm high digital FPD

Brand Name:	WELLMAN
Model Number:	X-6000
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,FDA,ISO9001

Packaging Details:

wooden case

Product Description

X-ray Nondestructive BGA Testing System with 13cm High Digital FPD

Working Principle

Key Advantages

Large Detector

130×130 mm large-area digital FPD

Oversized Table

520×520mm table with 15KG load capacity

Easy Operation

Easy to operation and only 2 hours training

Reliable X-ray Source

Closed tube with longest lifespan and maintenance-free operation

Automated Inspection

Programmable procedures for automated batch inspection

Intuitive Navigation

Automatic navigation window moves to anywhere you click

Tiltable FPD

FPD can tilt 60 degree without sacrificing magnification (optional)

Hardware Specifications

X-ray Source

Type	Closed, microfocus
Max Tube Voltage	90kV (optional)
Max Tube Current	200μA
Focal Spot Size	5μm
Function	Auto preheat

Flat Panel Detector

Effective Area	130mm×130mm
Pixel Size	85μm
Resolution	1536×1536
Frame Rate	20fps

Table

Size	420mm×420mm
Detectable Area	400mm×400mm
Max Load	15kg

Equipment

Magnification	Geometry 150X \| System 1500X
Inspection Speed	Max 3.0s/point
Dimensions	1100mm (L) × 1000mm (W) × 1600mm (H)
Weight	1000kg
Power Supply	AC110-220V 50/60HZ
Max Power	1300W
Industrial PC	Intel I5 CPU, 8G RAM, 240GB SSD
Displayer	24" HDMI LCD

Safety Features

Feature	Description

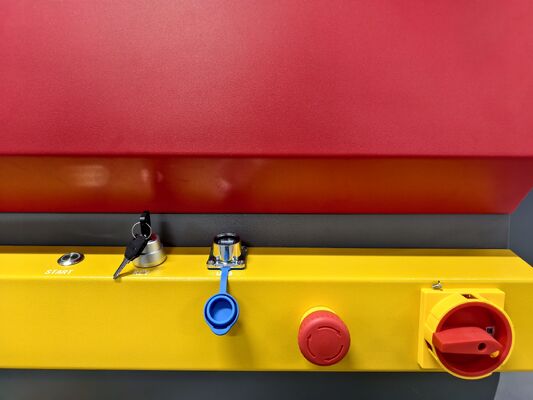

Emergency Stop	Located next to operation position for immediate power cutoff
Tube Protection	Software prevents leaving without closing X-ray tube
Radiation Leakage	No leakage
Lead Glass Observation Window	Transparent lead glass window shields radiation to observe internal status
Window and Back Door Safety Interlock	X-ray tube powers off immediately when window or door opens

Software Functions

Function	Description
Basic Operation	Full control via keyboard and mouse; real-time X-ray tube voltage/current adjustment
Image Processing	Adjustable brightness contrast and gain for clear imaging
Navigation and Positioning	One-click table movement via navigation window
Parameter Storage	Save and recall product inspection parameters
Void Rate Measurement	Automatic calculation of solder voids rate area and perimeter
Precision Measurement	Distance angle radius perimeter and through-hole soldering rate
Automated Inspection	Manual point setting array scanning and auto feature recognition

Other Functions

Distance: Click A and B points as baseline, then click C point to measure vertical distance
Distance Rate: Mostly used to measure soldering rate of through-hole
Angle: Click A and B points as baseline, then click C point to measure angle between BA and BC rays
Radius: Click three points to determine circle and measure circumference, area and radius
Perimeter: Click two points to determine square, measure length, width and area
