| Brand Name: | HAMAMATSU |
| Model Number: | V10905P |
| MOQ: | 1 |
| Payment Terms: | T/T |

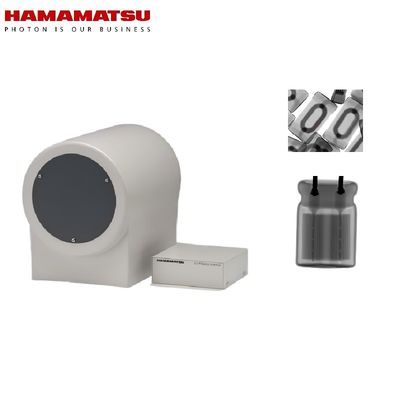

X Ray Image Intensifier V10905P Built in HV Power High Res 24x30 Film Holder for X Ray Imaging
| Parameters | Description/Value | Unit |
|---|---|---|
| X-ray I.I. | ||
| Input window material (Thickness) | Aluminum(t0.5mm) | 一 |
| Input phosphor material | Csl | 一 |
| Output phospho material | P43 or equivalent | 一 |
| Input surface field-of-view size | 4 inch mode | φ99 mm |
| 2inch mode | φ50 mm | |
| Output image size | φ20 | mm |
| Resolution (on input surface)(Typ.) | 4 inch mode | 100 Lp/cm |
| 2inch mode | 110 Lp/cm | |
| Conversion factor | 3.4 | cd/m²/uGy/s |
| Shading (Min.) | 60 | % |
| Contrast ratio | 14 | 一 |
| Operating ambient temperature | +10 to+40 | °C |
| Storage temperature | -10 to+45 | °C |
| Operating and storage humidity | Below 85%(no condensation) | 一 |
| Weight | Approx.8.0 | kg |
| Power supply | ||
| Input voltage(AC) | 100 to 240 | V |
| Output voltage(DC) | 24 | V |
| Power consumption | 30 | VA |
| Weight | Approx.0.5 | kg |
