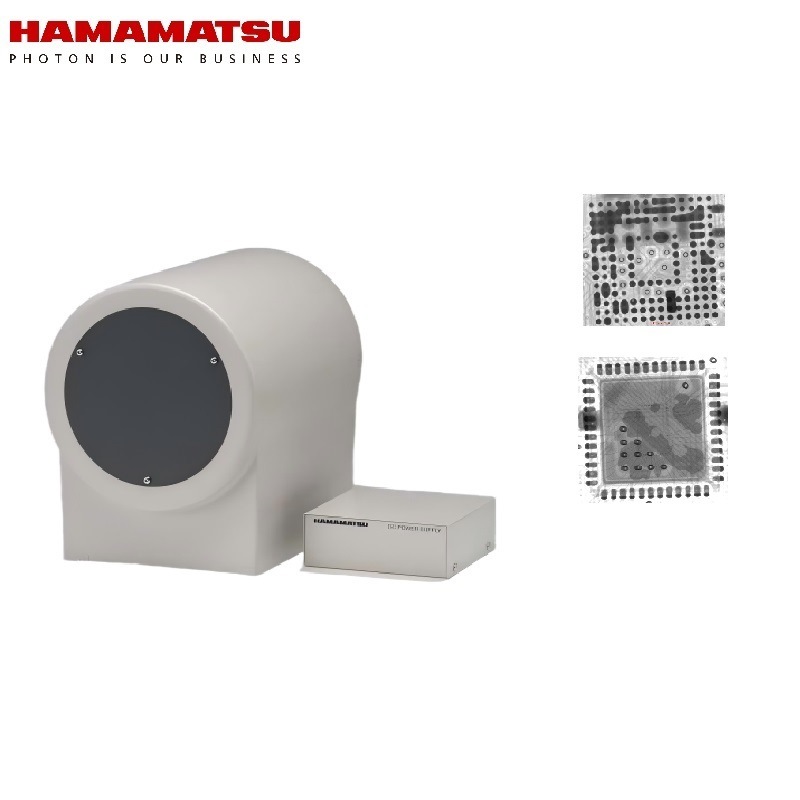

| Brand Name: | HAMAMATSU |
| Model Number: | V10905P |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Parameter | Description/Value | Unit |
|---|---|---|
| Input window material (Thickness) | Aluminum(t0.5mm) | — |
| Input phosphor material | Csl | — |
| Output phosphor material | P43 or equivalent | — |
| Input surface field-of-view size (4 inch mode) | φ99 | mm |
| Input surface field-of-view size (2 inch mode) | φ50 | mm |
| Output image size | φ20 | mm |
| Resolution (on input surface)(Typ.) (4 inch mode) | 100 | Lp/cm |
| Resolution (on input surface)(Typ.) (2 inch mode) | 110 | Lp/cm |
| Conversion factor | 3.4 | cd/m²/uGy/s |
| Shading (Min.) | 60 | % |
| Contrast ratio | 14 | — |
| Operating ambient temperature | +10 to +40 | °C |
| Storage temperature | -10 to +45 | °C |
| Operating and storage humidity | Below 85% (no condensation) | — |
| Weight | Approx. 8.0 | kg |
| Parameter | Description/Value | Unit |
|---|---|---|
| Input voltage (AC) | 100 to 240 | V |
| Output voltage (DC) | 24 | V |
| Power consumption | 30 | VA |
| Weight | Approx. 0.5 | kg |
