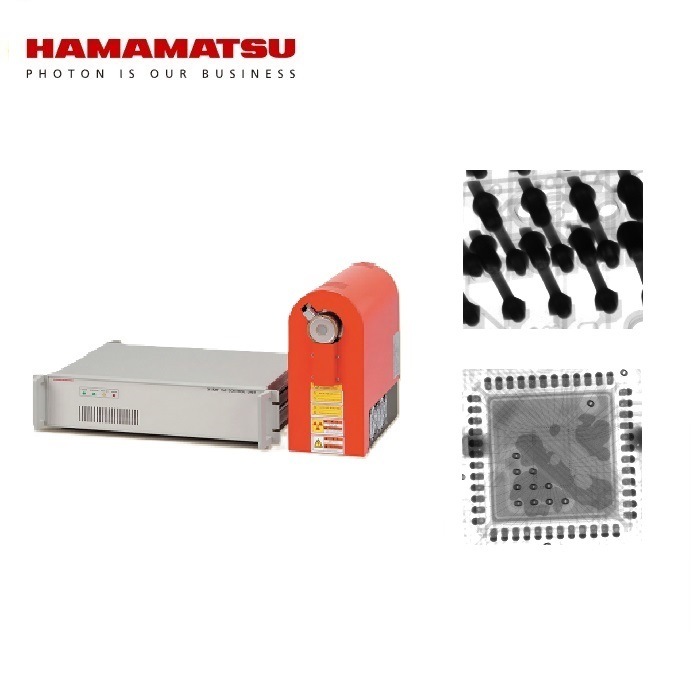

| Brand Name: | HAMAMATSU |
| Model Number: | L12161-07 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Parameter | Description/Value | Unit |
|---|---|---|
| X-ray tube voltage setting range | 0 to 150 | kV |
| X-ray tube current setting range | 0 to 500 | mA |
| X-ray tube voltage operational range | 40 to 150 | kV |
| X-ray tube current operational range | 10 to 500 | mA |
| Maximum output (Small Focus Mode) | 10 | W |
| Maximum output (Middle Focus Mode) | 30 | W |
| Maximum output (Large Focus Mode) | 75 | W |
| X-ray focal spot size (Small Focus Mode) | 7 (5 mm at 4 W) | mm |
| X-ray focal spot size (Middle Focus Mode) | 20 | mm |
| X-ray focal spot size (Large Focus Mode) | 50 | mm |
| X-ray beam angle | Approx. 43 | degree |
| Focus to object distance (FOD) | Approx. 17 | mm |
| Communication method | Interface: RS-232C (9-pin D-sub connector) | -- |
| Parameter | Description/Value | Unit |
|---|---|---|
| X-ray output window material / Thickness | Beryllium / 0.2 | mm |
| Target material | Tungsten | -- |
| Operating ambient temperature | +10 to +40 | °C |
| Storage ambient temperature | 0 to +50 | °C |
| Operating and storage humidity | 20 to 85 (No condensation) | % |
| Weight | Approx. 13.5 | kg |
| Parameter | Description / Value | Unit |
|---|---|---|
| Input voltage (AC) | Single phase 100 to 240 (50 Hz / 60 Hz) | V |
| Power consumption | Less than 220 | W |
| Operating ambient temperature | +10 to +40 | °C |
| Storage ambient temperature | 0 to +50 | °C |
| Operating and storage humidity | 20 to 85 (No condensation) | % |
| Weight | Approx. 6 | kg |
| Parameter | Description | Unit |
|---|---|---|
| RoHS directive | EN 50581 Category 9 | -- |
| EMC | IEC/EN 61326-1 Emission limits: CISPR 11 Group 1 Class A Immunity requirements: Table 2 | -- |
| Safety | IEC/EN 61010-1 | -- |
| Parameter | Description | Unit |
|---|---|---|
| Applicable PC | PC / AT compatible | -- |
| Applicable OS | Windows® XP, 7 | -- |
| Interface | RS-232C interface | -- |
1. See the graph of the X-ray tube voltage / current operation range.
2. Reference value: With 50% of maximum X-ray emission.
3. This weight includes the accessories of approx. 1.5 kg.
4. The control software is provided as a sample software for the purpose of MFX operation. The performance of the software is not guaranteed.
