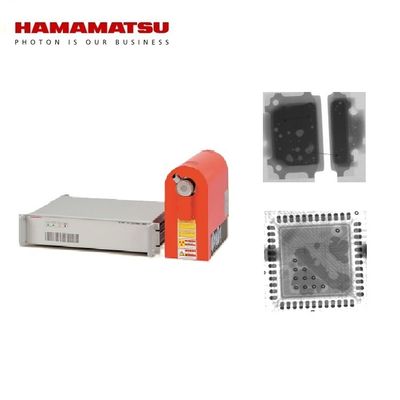

Industrial-grade microfocus X-ray source designed for precision non-destructive testing (NDT) of electronic components, PCBs, and various materials.
| Parameter | Value | Unit |
|---|---|---|
| X-ray tube voltage setting range | 0 to 150 | kV |
| X-ray tube current setting range | 0 to 500 | mA |
| X-ray tube voltage operational range | 40 to 150 | kV |
| X-ray tube current operational range | 10 to 500 | mA |
| Maximum output | Small Focus Mode: 10 W Middle Focus Mode: 30 W Large Focus Mode: 75 W |
W |
| X-ray focal spot size (Nominal) | Small Focus Mode: 7 (5 mm at 4 W) Middle Focus Mode: 20 Large Focus Mode: 50 |
mm |
| X-ray beam angle | Approx. 43 | degree |
| Focus to object distance (FOD) | Approx. 17 | mm |
| Communication method | RS-232C (9-pin D-sub connector) | -- |
| Parameter | Value | Unit |
|---|---|---|
| X-ray output window material / Thickness | Beryllium / 0.2 | mm |
| Target material | Tungsten | -- |
| Operating ambient temperature | +10 to +40 | °C |
| Storage ambient temperature | 0 to +50 | °C |
| Operating and storage humidity | 20 to 85 (No condensation) | % |
| Weight | Approx. 13.5 | kg |
| Parameter | Value | Unit |
|---|---|---|
| Input voltage (AC) | Single phase 100 to 240 (50 Hz / 60 Hz) | V |
| Power consumption | Less than 220 | W |
| Weight | Approx. 6 (includes 1.5kg accessories) | kg |
| Standard | Compliance |
|---|---|
| RoHS directive | EN 50581 Category 9 |
| EMC | IEC/EN 61326-1 |
| Safety | IEC/EN 61010-1 |
| Parameter | Value |
|---|---|
| Compatible PC | PC/AT compatible |
| Supported OS | Windows® XP, 7 |
Note 1: See the graph of the X-ray tube voltage/current operation range.
Note 2: X-ray beam angle reference value measured at 50% of maximum X-ray emission.
Note 3: Control software is provided as sample software for MFX operation. Software performance is not guaranteed.
