| Brand Name: | Wellman |

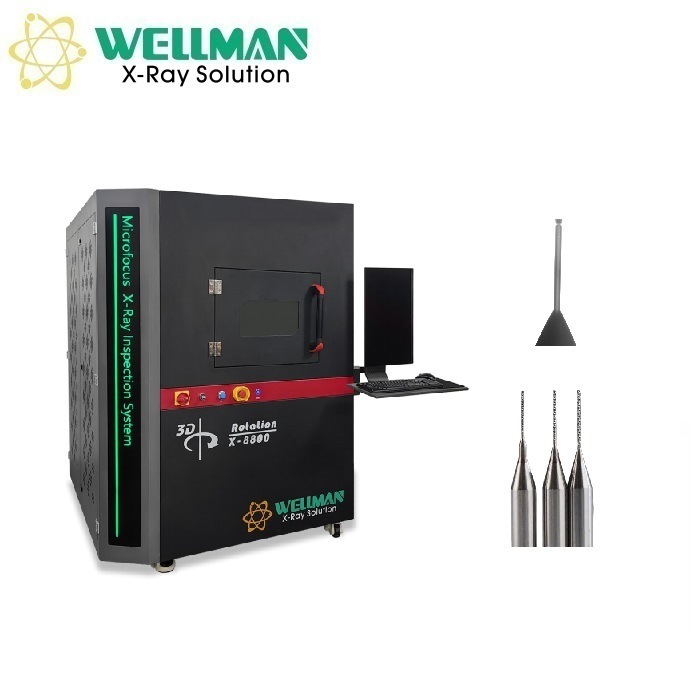

| Model Number: | X8800 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| X-ray Source | |
|---|---|
| Brand | Japan Hamamatsu |
| Type | Closed, microfocus |
| Max tube voltage | 90KV |
| Max tube current | 200μA |
| Focal spot size | 5μm |
| Function | Auto preheat |
| Flat Panel Detector | |
|---|---|
| Effective area | 130mm*130mm |
| Pixel size | 85μm |
| Resolution | 1536*1536 |
| Frame rate | 20fps |
| Tiltable angle | ±45° |
| Rotation angle | 360° |
| Equipment | |
|---|---|
| Magnification | Geometry: 200X | System: 1500X |
| Inspection speed | Max 3.0s/point |
| Dimensions | 1550mm(L)*1600mm(W)*1700mm(H) |
| Weight | 1800kg |
| Power supply | AC110-220V 50/60HZ |
| Max power | 1800W |
| Function Module | Description |
|---|---|
| Operation | Complete control via keyboard and mouse |
| X-ray tube control | Mouse-click operation with real-time voltage/current display and adjustment |
| Status bar | Visual indicators for interlock, pre-heat, and X-ray status |
| Image adjustment | Customizable brightness, contrast and gain settings |
| Product list | Save and recall inspection parameters for efficiency |
| Navigation window | Click-to-move table positioning |
| Motion axis status | Real-time coordinate display |
| Inspection result | Measurement results display (voids rate, distance, area, etc.) |
| Speed control | Adjustable movement speed for each axis |
