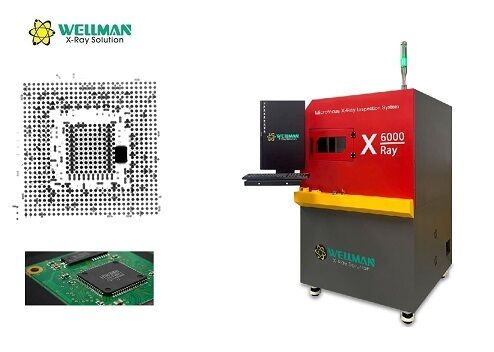

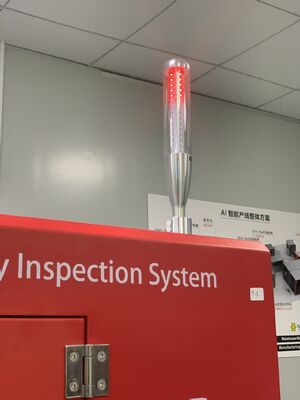

WELLMAN X6000 Industrial Microfocus X-ray Inspection System

The WELLMAN X6000 X-ray inspection equipment is a compact yet fully functional system designed for PCB SMT solder BGA voids detection in electronics manufacturing. Ideal for factories with limited space or few production lines.

Working Principle

X-6000 Automatic Inspection Equipment Working Principle

Key Advantages

Large Detector: 130×130 mm high-definition digital flat panel detector
Robust Stage: 420×420mm table with 10KG load capacity
Easy Operation: Requires only 2 hours of training
Reliable X-ray Source: Hamamatsu tubes with longest lifetime and maintenance-free operation
Automated Inspection: Programmable inspection procedures for batch processing
Intuitive Navigation: Automatic navigation window - table moves to where you click

Hardware Specifications

X-ray Source

Type	Closed, microfocus
Max Tube Voltage	90kV (optional)
Max Tube Current	200μA
Focal Spot Size	5μm
Function	Auto preheat

Flat Panel Detector

Effective Area	130mm×130mm
Pixel Size	85μm
Resolution	1536×1536
Frame Rate	20fps

Table & Equipment

Max Load	10kg
Size	420mm×420mm
Detectable Area	400mm×400mm
Magnification	Geometry 150X \| System 1500X
Inspection Speed	Max 3.0s/point
Dimensions	1100mm (L) × 1000mm (W) × 1600mm (H)
Weight	1000kg
Power Supply	AC110-220V 50/60HZ
Max Power	1300W
Industrial PC	Intel I5 CPU, 8G RAM, 240GB SSD
Displayer	24" HDMI LCD

Safety Features

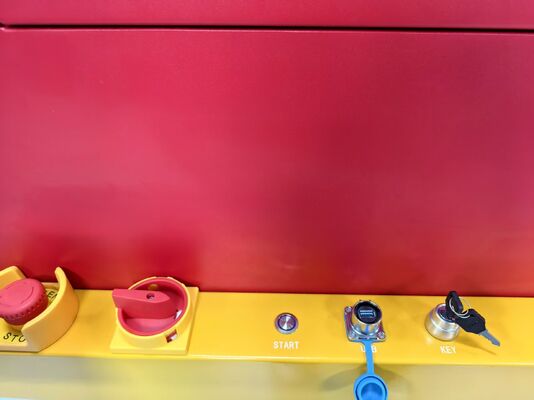

Emergency Stop	Located next to operation position for immediate power cutoff
Tube Protection	Software prevents leaving without closing X-ray tube
Radiation Leakage	No leakage (international standard: ≤1μSv/h)
Lead Glass Observation Window	Transparent lead glass window shields radiation to observe internal status
Window and Back Door Safety Interlock	X-ray tube powers off immediately when window or door opens

Software Operation

Operation	Keyboard and mouse can finish all operations
X-ray tube control	Using mouse to click the X button can turn on or off the X-ray
Status bar	Indicates the interlock status, pre-heat status, and X-ray status by flashing alternately red and green
Image effect adjustment	The brightness, contrast and gain of the image can be adjusted freely to achieve a satisfactory result
Product list	Users can save the inspection parameters, and can directly call the parameters to improve the inspection efficiency
Navigation window	The table will move to the place you click and display on the screen
Motion axis status	Display real-time coordinates
Inspection result	The measurement results (voids rate, distance, area, etc., set by users) display in order
Speed control	The movement speed of each axis can be adjusted to slow, normal and fast

Inspection Functions

Voids Rate Measurement

Automatic calculation: Click on two points to determine a rectangle. The software automatically finds and measures the edge of the solder ball in the rectangle, the pad and the internal voids, and can get the data of the voids rate, the area of the solder ball, the circumference, the biggest void's rate, the length and the width, and indicates NG or OK by red and green.

Parameters adjustment: Users can adjust the grayscale threshold, pixel, contrast, size filtering and other parameters to get accurate results of automatic calculation
Add voids manually: Users can draw a polygon or a free figure and calculate it as a void into the void rate
Save parameters: Users can save parameters such as grayscale threshold, pixel, contrast, size filtering and other parameters, and can directly call the parameters when detecting the same product, to improve the detection efficiency

Other Measurement Functions

Distance: Click the A and B points to set as the baseline, then click the C point to measure the vertical distance from the C point to the baseline
Distance rate: Mostly used to measure the soldering rate of the through-hole. Set one more point "D" than the distance. Divide the vertical distance from the D point to baseline by the vertical distance of the C point, to obtain the percentage ratio
Angle: Click the A and B points to set as the baseline, then click the C point to measure the angle between the BA and BC rays
Radius: Mostly used to measure round components such as solder balls. Click three points to determine a circle and measure the circumference, area and radius
Perimeter: Mostly used to measure square components, click two points to determine a square, measure the length, width and area

Automatic Inspection

Manual setting: Users can set any positions on the table as inspection points, the software will automatically inspect and save the picture
Array: For regular inspection points, users only need to set two of the inspection points and the number of rows and columns, the software will automatically inspect each point and save pictures
Automatic identification: For inspection points with obvious features, the software automatically identifies the positions, takes measurements, and saves the image

Application Examples

BGA Solder Bridge Inspection

BGA Solder Voids Inspection

PCB Through-Hole Inspection

IC Voids and Gold Wire Inspection

LED Solder Voids Inspection

LED Gold Wire Crack Inspection

Capacitor Inspection

Inductor Inspection

Sensor Inspection

Thyristor Surge Suppressors

Fiberglass Inspection

Cable Inspection

Diode Inspection

Steel Pipe Welding Gap

Automobile Electronics Inspection
