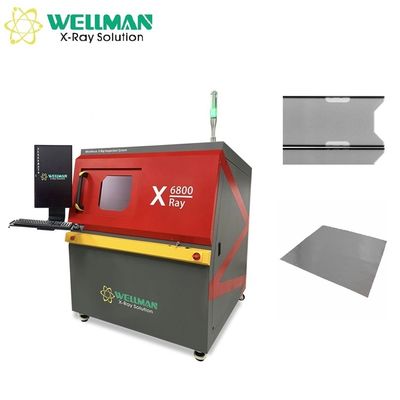

Industrial PCB X Ray Machine 60° Tiltable FPD And 90kV Maximum Tube Voltage

Brand Name:	WELLMAN
Model Number:	X6800
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,FDA

Application:

SMT PCB PKG LED Electronics Battery Harness Cultural Assets Etc,Food Processing Industry,Flip Chip,BGA,SMT PCB BGA

Power Supply:

AC220V(Optional),110V - 220V,220V 50Hz

Tube Type:

Closed X-ray Tube,Closed

Name:

BGA X-ray Equipment,X-ray Inspection Machine,pcb X-ray Machine

Operating System:

Windows 10

X-ray Leakage Amount:

≤1 U Sv/h,≤0.3 U Sv/h

Capacity:

Large,20KVA

Net Weight:

1200kg

Max Tube Voltage:

Effective Area:

130mm*130mm

Pixel Size:

Resolution:

1536*1536

Max Tube Current:

200μA

Packaging Details:

Wooden case

Highlight:

Industrial PCB X Ray Machine

PCB X Ray Machine 90kV Voltage

90kV Voltage SMT X Ray Machine

Product Description

WELLMAN X6800 Industrial X-Ray Inspection System

SMT PCB BGA Void Detection with Auto Navigation Window

WELLMAN X6800 Industrial X-Ray Inspection Machine delivers advanced SMT PCB inspection, with the capability to detect BGA voids. Equipped with ≤1μSv/h radiation safety and an auto navigation window, this system provides comprehensive inspection solutions for industrial uses.

Key Advantages

Automatic navigation window enables precise table positioning
530×530mm table with a 10KG load capacity
5-axis linkage system featuring adjustable speed
Programmable inspection procedures to realize automated batch inspection
Intuitive operation requiring only 2-hour training
Maintenance-free closed type X-ray tube with lifetime exceeding 10,000 hours
New generation 5" HD digital flat panel detector (FPD)
60° tiltable FPD maintains magnification without compromise

Hardware Specifications

X-ray Source

Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector

Effective area	130mm*130mm
Pixel size	85μm
Resolution	1536*1536
Frame rate	20fps
Tiltable angle	60°

Table Specifications

Size	530mm*530mm
Detectable area	500mm*500mm
Max load	10kg

Equipment Specifications

Magnification	Geometry 200X \| System 1500X
Inspection speed	Max 3.0s/point
Dimensions	1360mm (L) * 1365mm (W) * 1730mm (H)
Weight	1200kg
Power supply	AC110-220V 50/60HZ
Max power	1500W
Industrial PC	I5 CPU, 8G RAM, 500GB SSD
Displayer	24" HDMI LCD

Working Principle

Safety Features

Radiation leakage: No leakage (≤1μSv/h, international standard)
Transparent lead glass observation window enables safe internal viewing
Safety interlock system for window and back door
Window and back door safety interlock system
Electromagnetic safety switch locks when X-ray is active
Emergency stop button near operation position
Tube protection prevents leaving software without closing X-ray

Software Capabilities

Core Functions

Product list for saving and recalling inspection parameters
Navigation window for precise table positioning
Real-time motion axis coordinate display
Mouse/keyboard controlled X-ray tube operation with real-time voltage/current display
Status bar showing interlock, pre-heat, and X-ray status
Adjustable image brightness, contrast and gain
Inspection results display (voids rate, distance, area, etc.)
Adjustable axis movement speeds (slow/normal/fast)

Voids Rate Measurement
