Name: High Precision Industrial Automated X Ray Inspection PCB With 80kV Max Tube
Brand: SHENZHEN WEIMING PHOTOELECTRIC CO.,LTD.
SKU: IL-3000
Availability: InStock

Brand Name:	WELLMAN
Model Number:	IL-3000
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE, FDA

Type:

Microfocus

Max Tube Voltage:

90kV

Max Tube Current:

200μA

Focal Spot Size:

5μm

Detectable Area:

Length 520mm, Width 80-430mm Adjustable

Packaging Details:

Wooden case

Highlight:

Precision Automated X Ray Inspection PCB

80kV Automated X Ray Inspection PCB

Precision automated x ray inspection system

Product Description

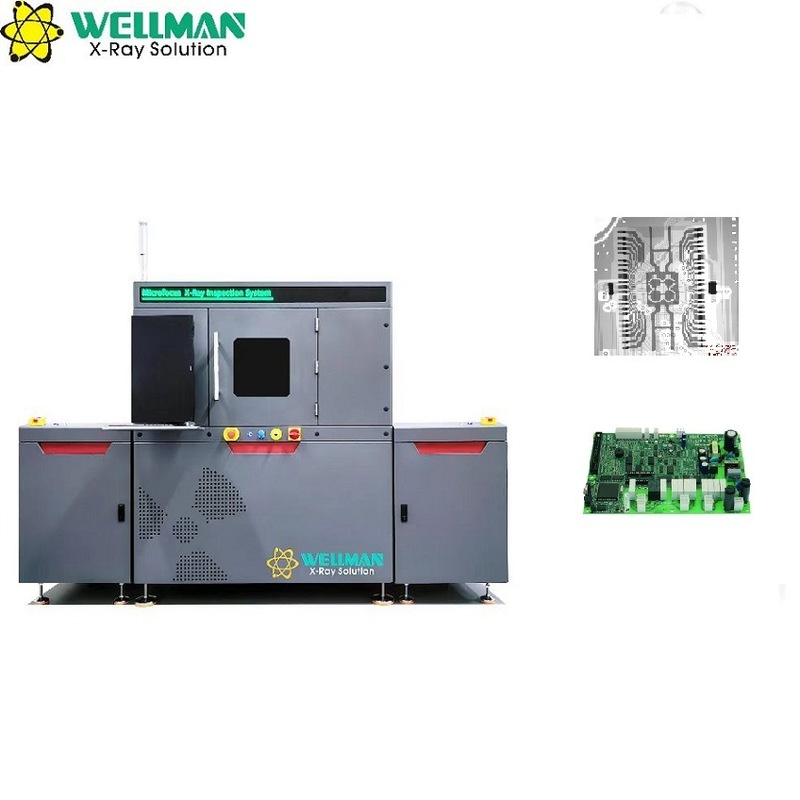

WELLMAN IL-3000 In-line Industrial X-Ray Inspection Machine for SMT PCB BGA Void Detection

The WELLMAN IL-3000 is a high-performance in-line industrial X-ray inspection system designed for automated PCB and BGA void detection in SMT manufacturing environments.

Key Advantages

Closed type X-ray tube with over 10,000 hours lifetime (maintenance-free)
New generation 5" HD digital flat panel detector (FPD)
Customizable inspection procedures for automated high-volume inspection
Intuitive operation with minimal training required (2 hours)
Automatic navigation window lets the table move to the clicked position
Belt transmission allows width adjustment (max width reaches 620mm)
6-axis motion system equipped with Panasonic servo motors (X-ray tube and FPD move synchronously)

Hardware Specifications

X-ray Source
Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector
Brand	IRay
Effective area	130mm * 130mm
Pixel size	85μm
Resolution	1536 * 1536
Frame rate	20fps
Tiltable angle	60°

Inspection System
Transmission	Belt
Motor	Panasonic servo motor
Detectable area	Length 520mm, width 80-430mm adjustable
Max load	10kg

Equipment Specifications
Magnification	Geometry 200X \| System 1500X
Inspection speed	Max 3.0s/point
Dimensions	2600mm (L) * 1300mm (W) * 1800mm (H)
Host machine dimensions	1400mm (L) * 1300mm (W) * 1800mm (H)
Weight	2200kg
Power supply	AC110-220V 50/60HZ
Max power	3000W
Industrial PC	I7 CPU, 16G RAM, 240GB SSD + 1T HDD
Displayer	24" HDMI LCD

Working Principle

Working principle of the IL-3000 X-ray inspection system

Safety Features

Radiation leakage: No leakage (≤1μSv/h, international standard)
Electromagnetic safety switch locks when X-ray is active
Emergency stop button located near operation position
Transparent lead glass observation window for safe internal viewing
Window and back door safety interlock system
Automatic tube protection when software is exited

Software Functions

Basic Operation

Full keyboard and mouse control
X-ray tube control via mouse click with real-time voltage and current display
Status bar displays interlock pre-heat and X-ray status
Image brightness contrast and gain are adjustable
Product parameter saving and recall for efficient inspection
Navigation window for precise table positioning
Adjustable axis movement speeds (slow, normal, fast)
Real-time motion axis coordinate display
Inspection result display with measurement data

Voids Rate Measurement

Automatic calculation of voids rate, solder ball area, circumference, etc.
Adjustable grayscale threshold, pixel, contrast, and size filtering parameters
Manual void addition via polygon or freehand drawing
Parameter saving for consistent product inspection

Measurement Functions

Distance measurement between points
Distance rate calculation for through-hole soldering
Angle measurement between points
Radius measurement for circular components
Perimeter measurement for square components

Automatic Inspection

Manual inspection point setting
Array inspection for regular patterns
Automatic feature recognition for distinctive inspection points

Application Examples

Example of IL-3000 X-ray inspection results

Additional example of inspection results
