Name: Sealed Tube 90kv PCB X Ray Machine For BGA SOP Inspection High Performance
Brand: SHENZHEN WEIMING PHOTOELECTRIC CO.,LTD.
SKU: X6800M
Availability: InStock

Brand Name:	WELLMAN
Model Number:	X6800M
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE, FDA

Tube Type:

Sealed

Operate System:

Windows 10

Resolution:

1536*1536

Application:

PCB Inspection

Focus Spot Size:

5μm

Voltage:

AC 220V

Tilt Detection Angle:

60°

Max Tube Voltage:

90kv

Effective Area:

130mm*130mm

Pixel Size:

85μm

Max Tube Current:

200μA

Packaging Details:

Wooden case

Highlight:

90kv PCB X Ray Machine

BGA SOP Inspection pcb xray machine

90kv pcb inspection machine

Product Description

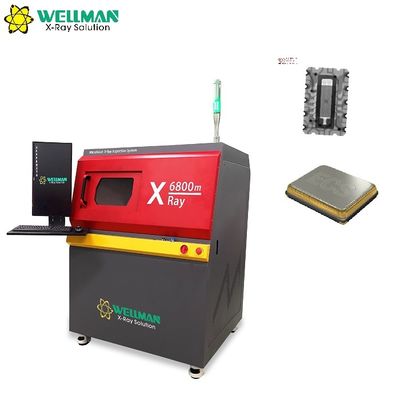

WELLMAN X6800M Microfocus X-Ray Inspection System

High-performance inspection system equipped with a Japan Hamamatsu X-ray tube (10,000+ hours lifetime), 60° tiltable FPD, and 1500X high magnification capability

Key Advantages

Japan Hamamatsu X-ray tube - world's best closed type with 10,000+ hours lifetime (maintenance-free)
430×430mm table with 15kg load capacity
Speed-adjustable 5-axis linkage system keeps image center stable during tilting
Programmable inspection procedures to enable automated batch inspection
Intuitive operation, requiring only 2 hours of training
New generation 5" HD digital flat panel detector (FPD)
60° tiltable FPD maintains magnification during inspection
Automatic navigation window - table moves to clicked position

Hardware Specifications

X-ray Source
Brand	Japan Hamamatsu
Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat
Flat Panel Detector
Effective area	130mm*130mm
Pixel size	85μm
Resolution	1536*1536
Frame rate	20fps
Tiltable angle	60°
Table
Size	430mm*430mm
Detectable area	410mm*410mm
Max load	15kg
Equipment
Magnification	Geometry	150X
	System	1500X
Inspection speed	Max 3.0s/point
Dimensions	1220mm (L) * 1250mm (W) * 1600mm (H)
Weight	1250kg
Power supply	AC110-220V 50/60HZ
Max power	1500W
Industrial PC	I5 CPU, 4G RAM, 240GB SSD
Displayer	24" HDMI LCD

Working Principle

Safety Features

Radiation leakage: No leakage (≤1μSv/h, international standard)
Transparent lead glass observation window for safe internal viewing
Window and back door safety interlock - X-ray powers off when opened
Electromagnetic safety switch locks when X-ray is active
Emergency stop button located near operation position
Tube protection prevents leaving software without closing X-ray

Software Functions

Basic Operations

Full keyboard and mouse control
X-ray control via mouse click, with real-time voltage and current display
Status bar indicates interlock, pre-heat, and X-ray status
Image brightness, contrast, and gain are adjustable
Product list for saving and retrieving inspection parameters
Navigation window for precise table positioning
Real-time motion axis coordinate display
Inspection results display with measurement data
Adjustable axis movement speeds (slow/normal/fast)

Voids Rate Measurement

Automatic calculation of voids rate, solder ball area, circumference
Adjustable grayscale threshold, pixel, contrast, and size filtering
Manual void addition via polygon or freehand drawing
Parameter saving for consistent product inspection

Measurement Functions

Distance measurement between points
Distance rate calculation for through-hole soldering
Angle measurement between defined points
Radius measurement for circular components
Perimeter measurement for square components

Automatic Inspection

Manual point setting for customized inspection positions
Array mode for regular inspection point patterns
Automatic feature recognition for characteristic inspection points

Application Examples
