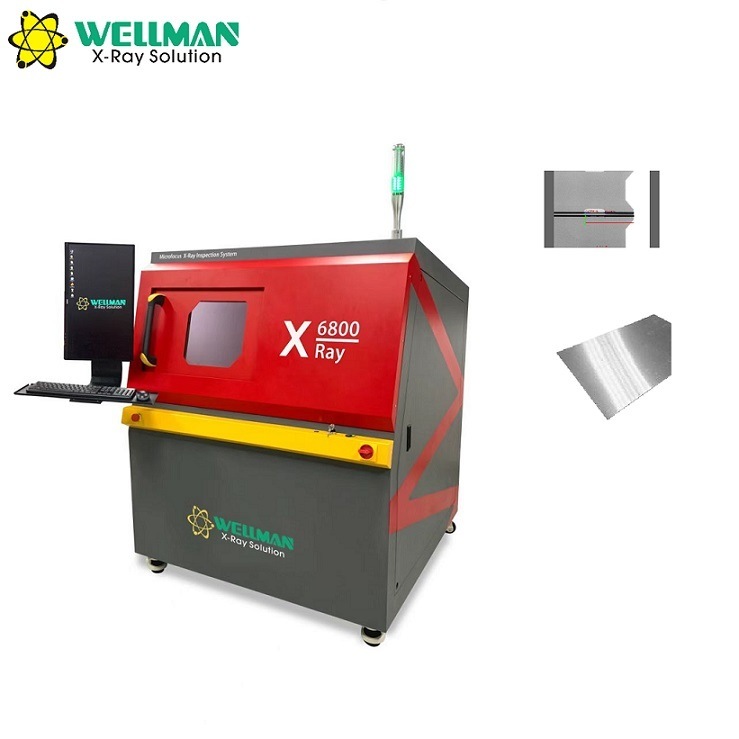

Microfocus X-Ray Inspection System X6800
| X-ray source | ||
|---|---|---|
| Type | Closed, microfocus | |
| Max tube voltage | 90kV | |
| Max tube current | 200μA | |
| Focal spot size | 5μm | |
| Function | Auto preheat | |
| Flat panel detector | ||
| Effective area | 130mm*130mm | |
| Pixel size | 85μm | |
| Resolution | 1536*1536 | |
| Frame rate | 20fps | |
| Tiltable angle | 60° | |
| Table | ||
| Size | 530mm*530mm | |
| Detectable area | 500mm*500mm | |
| Max load | 10kg | |
| Equipment | ||
| Magnification | Geometry 200X | System 1500X |
| Inspection speed | Max 3.0s/point | |
| Dimensions | 1360mm (L) * 1365mm (W) * 1730mm (H) | |
| Weight | 1200kg | |
| Power supply | AC110-220V 50/60HZ | |
| Max power | 1500W | |
| Industrial PC | I5 CPU, 8G RAM, 500GB SSD | |
| Displayer | 24" HDMI LCD | |
| Safety | ||
| Radiation leakage | No leakage, international standard: ≤1μSv/h | |
| Lead glass observation window | Transparent lead glass window shields radiation to observe the inner status | |
| Window and back door safety interlock | X-ray tube powers off immediately when opened; prevents turning on when open | |
| Electromagnetic safety switch | Locks when X-ray is on, preventing window opening | |
| Emergency stop | Located next to operation position for immediate power off | |
| Tube protection | Software prevents leaving without closing X-ray tube | |
| Function module | Operation |
|---|---|
| X-ray tube control | Mouse-click operation for on/off with real-time voltage/current display and adjustment |
| Status bar | Displays interlock status, pre-heat status, and X-ray status with color indicators |
| Image effect adjustment | Adjustable brightness, contrast and gain for optimal imaging |
| Product list | Save and recall inspection parameters for improved efficiency |
| Navigation window | Click-to-move functionality for precise positioning |
| Motion axis status | Real-time coordinate display |
| Inspection result | Measurement results display with pass/fail indicators |
| Speed control | Adjustable movement speed for each axis |
| Voids rate measurement | Automatic calculation of solder ball parameters with adjustable thresholds |
| Other measurement functions | Includes distance, angle, radius, and perimeter measurements |
| Automatic inspection | Manual setting, array, and automatic identification modes |
