Name: Industrial X Ray Defect Analyzer SMT Manufacturing BGA LED Inspection
Brand: SHENZHEN WEIMING PHOTOELECTRIC CO.,LTD.
SKU: X6800
Availability: InStock

Brand Name:	WELLMAN
Model Number:	X6800
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,FDA

Power:

Electronic,0.5KW,1500W

Warranty:

1 Year,12 Months,10000 Hours,one Year

Properties:

Medical X-ray Equipments & Accessories

Application:

SMT PCB PKG LED Electronics Battery Harness Cultural Assets Etc,Food Processing Industry,Flip Chip,BGA,SMT PCB BGA

Weight:

15kg,1000kg,260 KG,Aprox. 600kg,450kg

Power Supply:

AC220V(Optional),110V - 220V,220V 50Hz

Tube Type:

Closed X-ray Tube,Closed

Name:

BGA X-ray Equipment,X-ray Inspection Machine,pcb X-ray Machine

Operating System:

Windows 10

Voltage:

220V/50Hz,50-90KV

X-ray Leakage Amount:

≤1 U Sv/h,≤0.3 U Sv/h

Capacity:

Large,20KVA

Dimensions:

1040mm X 855mm X 1510mm,600*600*800(L*W*H),Approx.340mm(D)X400mm(W)X360mm(H)

Total Power:

2.5Kw,1.7Kw

Pixel Size:

85μm

Resolution:

1536*1536

Max Tube Current:

200μA

Packaging Details:

Wooden case

Highlight:

Industrial X-ray defect analyzer

SMT manufacturing inspection machine

BGA LED X-ray inspection

Product Description

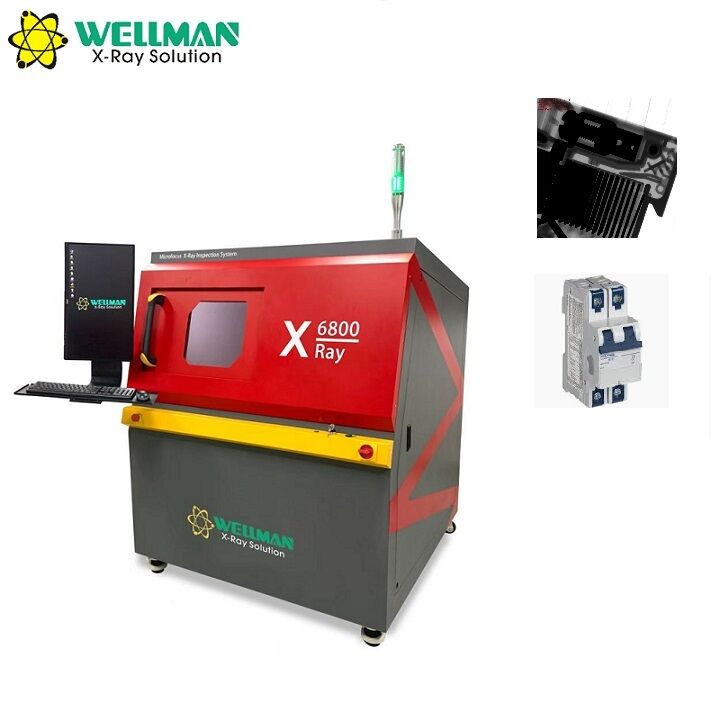

Industrial X Ray Defect Analyzer SMT Manufacturing BGA LED Inspection X6800

Product Description

Table with 530*530mm size and 10KG load capacity
5-axis linkage system with adjustable speed
Programmable inspection procedures enabling automated batch inspection
Intuitive operation for quick defect identification (requiring 2-hour training)
Closed-type X-ray tube: Over 10,000 hours of service life and maintenance-free operation
New-generation 5" HD digital flat panel detector (FPD)
60° tiltable FPD: Maintains magnification without compromise
Auto-navigation window: The table moves directly to clicked positions

Hardware Specifications

X-ray Source

Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector

Effective area	130mm*130mm
Pixel size	85μm
Resolution	1536*1536
Frame rate	20fps
Tiltable angle	60°

Table Specifications

Size	530mm*530mm
Detectable area	500mm*500mm
Max load	10kg

Equipment Specifications

Magnification	Geometry 200X \| System 1500X
Inspection speed	Max 3.0s/point
Dimensions	1360mm (L) * 1365mm (W) * 1730mm (H)
Weight	1200kg
Power supply	AC110-220V 50/60HZ
Max power	1500W
Industrial PC	I5 CPU, 8G RAM, 500GB SSD
Displayer	24" HDMI LCD

Working Principle

X6800 PCB X-ray Inspection Machine working principle diagram

Safety Features

Radiation leakage: No leakage, meeting international standard (≤1μSv/h)
The electromagnetic safety switch locks automatically when the X-ray is in operation
An emergency stop button is installed near the operation position for quick power-off
Tube protection prevents leaving software without closing X-ray
Transparent lead glass observation window for safe internal viewing
Window and back door safety interlock system

Software Capabilities

Core Functions

Real-time motion axis coordinate display
Inspection results display (voids rate, distance, area, etc.)
Adjustable axis movement speeds (slow/normal/fast)
Status bar showing interlock, pre-heat, and X-ray status
Adjustable image brightness, contrast and gain
Product list for saving and recalling inspection parameters
Navigation window for precise table positioning
Mouse/keyboard controlled X-ray tube operation with real-time voltage/current display

Voids Rate Measurement
