| Brand Name: | WELLMAN |
| Model Number: | X-Ray X-6800 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | Worldwide supply |

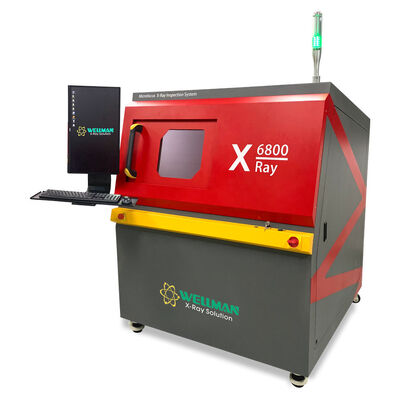

The Wellman X6800 is an enclosed microfocus X-ray inspection system engineered for PCB and PCBA assemblies, BGA solder joints, IC bond wires, LED components, and other electronic parts. It combines a 60° tilting flat panel detector, a 5-axis motion system, and programmable inspection functions to support multi-angle inspection and efficient quality control. The inspection software delivers automatic solder void ratio measurement with OK/NG indication based on user-defined settings.
| Type | Closed, microfocus |
|---|---|
| Max Tube Voltage | 90kV (110kV, 130kV optional) |
| Max Tube Current | 200μA |
| Focal Spot Size | 5μm (4μm, 2μm optional) |
| Function | Auto preheat |
| Effective Area | 130mm × 130mm |
|---|---|
| Pixel Size | 85μm |
| Resolution | 1536 × 1536 |
| Frame Rate | 20fps |
| Tiltable Angle | 60° |
| Size | 530mm × 530mm |
|---|---|
| Detectable Area | 500mm × 500mm |
| Max Load | 10kg |
| Magnification | Geometry 200X | System 1500X |
|---|---|
| Inspection Speed | Max 3.0s/point |
| Dimensions | 1360mm (L) × 1365mm (W) × 1730mm (H) |
| Weight | 1200kg |
| Power Supply | AC110-220V 50/60HZ |
| Max Power | 1500W |
| Industrial PC | I5 CPU, 8G RAM, 500GB SSD |
| Displayer | 24" HDMI LCD |
| Radiation Leakage | No leakage, international standard: ≤1μSv/h |
|---|---|
| Lead Glass Observation Window | Transparent lead glass window shields radiation for internal observation |
| Window and Back Door Safety Interlock | X-ray tube powers off immediately when window or door is opened |
| Electromagnetic Safety Switch | Locks when X-ray is on, preventing window opening |
| Emergency Stop | Located near operation position for immediate power cutoff |
| Tube Protection | Software prevents leaving without closing X-ray tube |
| Operation | Complete control via keyboard and mouse |
|---|---|
| X-ray Tube Control | Mouse-click activation with real-time voltage/current display and adjustment |
| Status Bar | Visual indication of interlock, pre-heat, and X-ray status |
| Image Effect Adjustment | Adjustable brightness, contrast and gain for optimal imaging |
| Product List | Save and recall inspection parameters for efficiency |
| Navigation Window | Click-to-move table positioning with camera guidance |
| Motion Axis Status | Real-time coordinate display |
| Inspection Result | Organized display of measurement results with NG/OK indicators |
| Speed Control | Adjustable axis movement speeds (slow, normal, fast) |
| Automatic Calculation | Rectangle-based solder ball analysis with comprehensive void data |
|---|---|
| Parameters Adjustment | Customizable grayscale threshold, pixel, contrast, and size filtering |
| Manual Void Addition | Polygon or free-form drawing for custom void calculation |
| Parameter Saving | Save and recall measurement parameters for consistent results |
| Distance | Baseline-based vertical distance measurement |
|---|---|
| Distance Rate | Through-hole soldering rate percentage calculation |
| Angle | Ray-based angle measurement between points |
| Radius | Circle component measurement (circumference, area, radius) |
| Perimeter | Square component measurement (length, width, area) |
| Manual Setting | Custom inspection point positioning with automatic imaging |
|---|---|
| Array | Grid-based automatic inspection for regular patterns |
| Automatic Identification | Feature-based position recognition and measurement |
