| Brand Name: | WELLMAN |
| Model Number: | X6000 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | Worldwide supply |

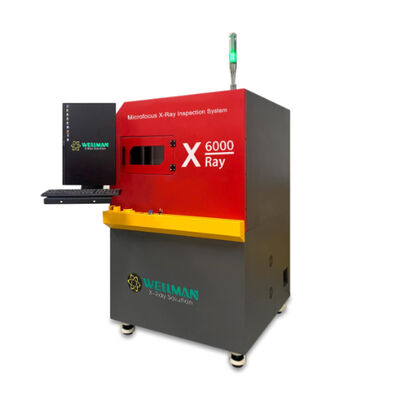

The X6000 is an advanced industrial X-ray inspection system engineered for BGA, LED, IC solder void analysis, crack detection, and PCBA quality control in SMT production lines. It combines a maintenance-free microfocus X-ray source, a high-definition flat panel detector, and programmable automated inspection software to deliver fast, repeatable defect detection for electronics manufacturing.
| Type | Sealed, microfocus |
|---|---|
| Max Tube Voltage | 90kV |
| Max Tube Current | 200μA |
| Focal Spot Size | 5μm |
| Function | Auto preheat |
| Effective Area | 130mm × 130mm |
|---|---|
| Pixel Size | 85μm |
| Resolution | 1536 × 1536 |
| Frame Rate | 20fps |
| Size | 420mm × 420mm |
|---|---|
| Detectable Area | 400mm × 400mm |
| Max Load | 15kg |
| Magnification | Geometry 200X | System 1500X |
|---|---|
| Inspection Speed | Max 3.0s/point |
| Dimensions | 1360mm (L) × 1365mm (W) × 1730mm (H) |
| Weight | 1200kg |
| Power Supply | AC110–220V 50/60Hz |
| Max Power | 1500W |
| Industrial PC | I5 CPU, 8G RAM, 500GB SSD |
| Displayer | 24" HDMI LCD |
| Radiation Leakage | No leakage |
|---|---|
| Lead Glass Observation Window | Transparent lead glass window shields radiation while allowing observation of the inner status |
| Window and Back Door Safety Interlock | Automatic X-ray power off when opened |
| Electromagnetic Safety Switch | Locks the observation window when X-ray is active |
| Emergency Stop | Located near the operation position for immediate power cutoff |
| Tube Protection | Prevents software exit without proper X-ray tube shutdown |
| Function Module | All operations can be completed with keyboard and mouse |
|---|---|
| X-ray Tube Control | Click the X button with the mouse to turn the X-ray on or off. Real-time tube voltage and current values are displayed alongside; users can click the up/down buttons, drag the slider, or type a value to adjust. |
| Status Bar | Indicates interlock status, pre-heat status, and X-ray status by flashing alternately red and green. |
| Image Effect Adjustment | Brightness, contrast, and gain of the image can be adjusted freely to achieve a satisfactory result. |
| Product List | Users can save inspection parameters such as Z-axis position, brightness, contrast, and gain, and directly recall them when inspecting the same product to improve inspection efficiency. |
| Navigation Window | After the camera photographs the table, click anywhere in the photo and the table moves to the selected location and displays it on screen. |
| Motion Axis Status | Displays real-time coordinates. |
| Inspection Result | Measurement results (voids rate, distance, area, etc., as set by users) are displayed in order. |
| Speed Control | The movement speed of each axis can be adjusted to slow, normal, or fast. |
| Automatic Calculation | Click two points to define a rectangle. The software automatically finds and measures the edge of the solder ball, the pad, and internal voids within the rectangle, returning data on voids rate, solder ball area, circumference, largest void rate, length, and width, and indicating NG or OK by red and green. |
|---|---|
| Parameters Adjustment | Users can adjust the grayscale threshold, pixel, contrast, size filtering, and other parameters to obtain accurate automatic calculation results. |
| Add Voids Manually | Users can draw a polygon or free figure and calculate it as a void into the void rate. |
| Save Parameters | Users can save parameters such as grayscale threshold, pixel, contrast, and size filtering, and directly recall them when detecting the same product to improve detection efficiency. |
| Manual Setting | Users can set any positions on the table as inspection points; the software automatically inspects and saves the picture. |
|---|---|
| Array | For regular inspection points, users only need to set two inspection points plus the number of rows and columns; the software automatically inspects each point and saves pictures. |
| Automatic Identification | For inspection points with obvious features, the software automatically identifies positions, takes measurements, and saves the image. |
| Distance | Click points A and B to set the baseline, then click point C to measure the vertical distance from C to the baseline. |
|---|---|
| Distance Rate | Mostly used to measure the soldering rate of through-holes. Set an additional point D beyond the distance measurement; divide the vertical distance from D to the baseline by the vertical distance of C to obtain the percentage ratio of D to C. |
| Angle | Click points A and B to set the baseline, then click point C to measure the angle between rays BA and BC. |
| Radius | Mostly used to measure round components such as solder balls. Click three points to determine a circle and measure the circumference, area, and radius. |
| Perimeter | Mostly used to measure square components. Click two points to determine a square and measure the length, width, and area. |
