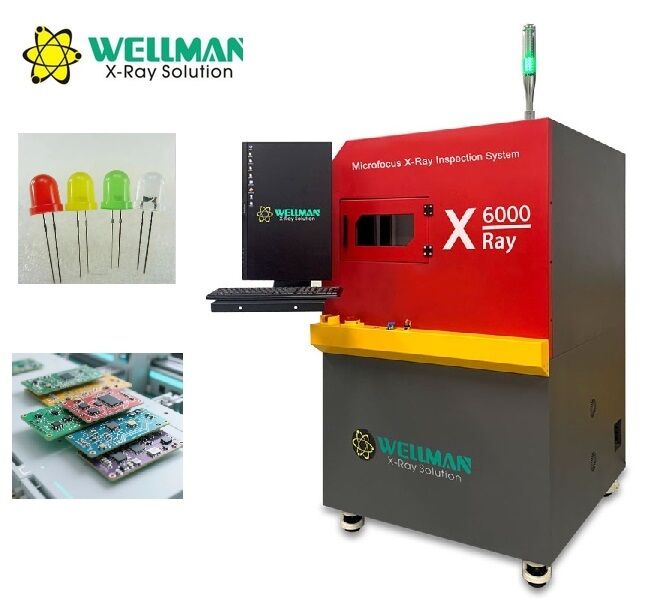

10,000+ hours long-lifetime closed X-ray tube & next-gen 5" HD FPD, ensuring maintenance-free operation and premium imaging
420×420mm worktable (15KG load capacity) with auto navigation window for one-click positioning
Speed-adjustable 3-axis linkage system + optional 360° rotary jig for flexible multi-angle inspection
Programmable inspection protocols to realize efficient automated batch testing
Intuitive operation enabling rapid defect detection, with only 2 hours of training required

Hardware Specifications

X-ray Source

Flat Panel Detector

Table Specifications

Equipment Parameters

Safety Features

Radiation Leakage	No leakage, international standard: ≤1μSv/h
Window and Back Door Safety Interlock	X-ray tube powers off immediately when opened; prevents X-ray activation when open
Electromagnetic Safety Switch	Locks when X-ray is on, preventing window opening
Emergency Stop	Located next to operation position for immediate power cutoff

Working Principle

3-Axis Linkage Offline Inspection Equipment working principle diagram

Software Functions

Core Functions	Concise Operation Instructions
X-ray Tube Control	On/off & Parameter Adjustment - Click the "X" button to start/stop; real-time display of tube voltage/current, adjustable via buttons, sliders or manual input.
Image Optimization	Effect Adjustment - Freely adjust brightness, contrast and gain for clear imaging.
Navigation & Operation	Auto Navigation + Speed Control - One-click positioning by clicking the captured worktable image; 3-speed (slow/normal/fast) adjustment for axes.
Parameter Management	Storage & Retrieval - Save product-specific parameters (Z-axis position, image settings) for quick recall in repeated inspections.
Core Measurement	Voids Rate Measurement - Auto identify and calculate voids rate in solder balls/pads; support parameter adjustment and manual void drawing.
Geometric Measurement	Measure distance, angle, radius, perimeter and through-hole soldering rate for various components.
Automated Inspection	Batch Detection - Support manual/array/auto-feature recognition for inspection points; auto inspect and save images in batches.
