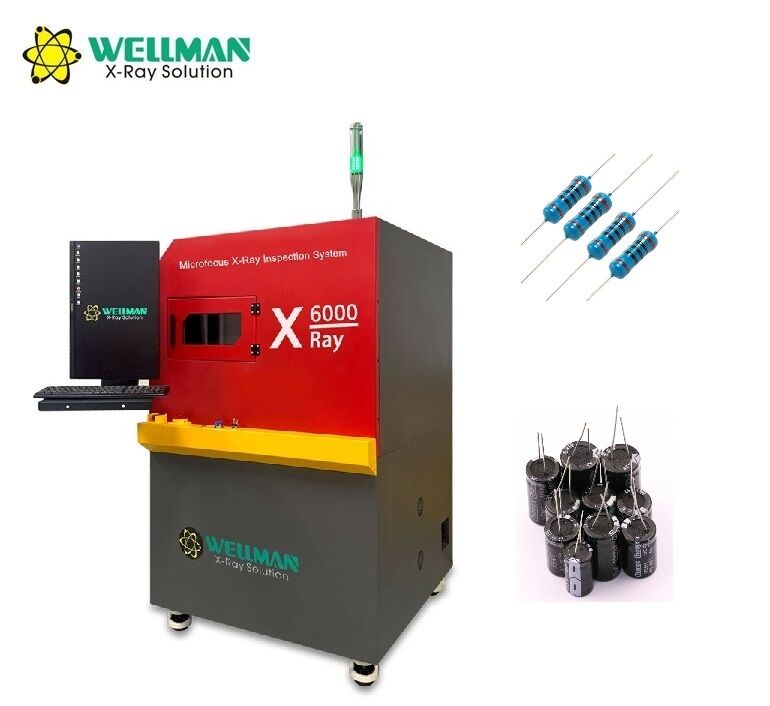

Multi-angle Automated Microfocus X-Ray Inspection System

Brand Name:	WELLMAN
Model Number:	X-6000
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,FDA,ISO9001

Warranty:

12 Months

Usage:

Auto Testing Machine

Application:

Inspection For The Product In Bulk,SMT PCB BGA LED Electronics Battery Harness Cultural Assets Etc

Color:

Blue,Silvery White,Grey

Net Weight:

800KG

Packaging Details:

wooden case

Highlight:

automated PCB X-ray inspection system

multi-angle microfocus X-ray machine

PCB X-ray system with warranty

Product Description

Multi-angle Automated Microfocus X-Ray Inspection System

Automatic PCBA/BGA/LED Inspection Equipment

The X-6000 Automatic Inspection Equipment delivers advanced X-ray inspection capabilities for PCBA, BGA, and LED components with intuitive operation and high efficiency.

Working Principle

Key Advantages

13×13 cm high-definition large-area digital flat panel detector

420×420mm table with 15KG load capacity

Automatic navigation window - table moves to your click location

Hamamatsu phototubes ensure extended lifespan and maintenance-free operation

Programmable inspection procedures for automated high-volume inspection

Easy operation with quick defect identification - only 2 hours training required

Hardware Specifications

X-ray Source
Type	Closed, microfocus
Max Tube Voltage	90kV
Max Tube Current	200μA
Focal Spot Size	5μm
Function	Auto preheat

Flat Panel Detector
Effective Area	130mm×130mm
Pixel Size	85μm
Resolution	1536×1536
Frame Rate	20fps

Table
Size	420mm×420mm
Detectable Area	400mm×400mm
Max Load	15kg

Equipment
Magnification	Geometry 150X \| System 1500X
Inspection Speed	Max 3.0s/point
Dimensions	1100mm (L) × 1000mm (W) × 1600mm (H)
Weight	1000kg
Power Supply	AC110-220V 50/60HZ
Max Power	1300W
Industrial PC	Intel I5 CPU, 8G RAM, 240GB SSD
Displayer	24" HDMI LCD

Safety Features

Radiation Leakage: No leakage, international standard: ≤1μSv/h

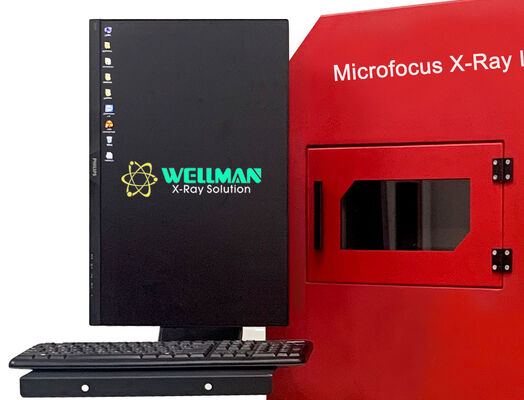

Lead Glass Observation Window: Transparent lead glass window shields radiation to observe internal status
Window and Back Door Safety Interlock: X-ray tube powers off immediately when window or door opens; prevents X-ray activation when open
Electromagnetic Safety Switch: Locks when X-ray is on, preventing window opening
Emergency Stop: Located next to operation position for immediate power cutoff
Tube Protection: Software prevents leaving without closing X-ray tube

Software Capabilities

Function Module	Operation
X-ray Tube Control	Mouse-click activation with real-time voltage/current display and adjustment controls
Status Bar	Displays interlock status, pre-heat status, and X-ray status with red/green indicators
Image Effect Adjustment	Adjustable brightness, contrast and gain for optimal image quality
Product List	Save and recall inspection parameters for improved efficiency
Navigation Window	Click-to-move functionality with camera-guided positioning
Motion Axis Status	Real-time coordinate display
Inspection Result	Organized display of measurement results including voids rate, distance, area with OK/NG indicators
Speed Control	Adjustable movement speed for each axis (slow, normal, fast)
Voids Rate Measurement	Automatic calculation with adjustable parameters for precise results
Other Measurement Functions	Distance, distance rate, angle, radius, perimeter, and area calculations
Automatic Inspection	Manual setting, array configuration, and automatic identification modes
