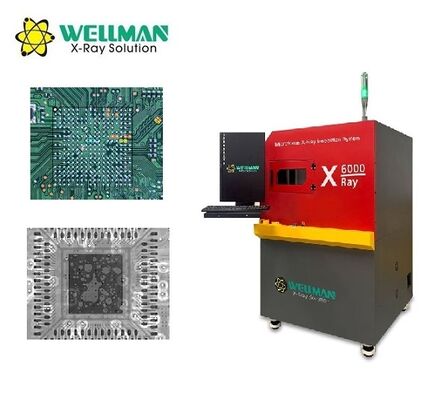

13×13 cm high-definition large-area digital flat panel detector
420×420mm table with 15KG load capacity
Automatic navigation window - table moves to your click location
Hamamatsu phototubes ensure extended lifespan and maintenance-free operation
Programmable inspection procedures for automated high-volume inspection
Easy operation with quick defect identification -- only 2 hours training required

Hardware Specifications

X-ray Source

Type	Closed, microfocus
Max Tube Voltage	90kV
Max Tube Current	200μA
Focal Spot Size	5μm
Function	Auto preheat

Flat Panel Detector

Effective Area	130mm×130mm
Pixel Size	85μm
Resolution	1536×1536
Frame Rate	20fps

Table

Size	420mm×420mm
Detectable Area	400mm×400mm
Max Load	15kg

Equipment

Magnification	Geometry 150X \| System 1500X
Inspection Speed	Max 3.0s/point
Dimensions	1100mm (L) × 1000mm (W) × 1600mm (H)
Weight	1000kg
Power Supply	AC110-220V 50/60HZ
Max Power	1300W
Industrial PC	Intel I5 CPU, 8G RAM, 240GB SSD
Displayer	24" HDMI LCD

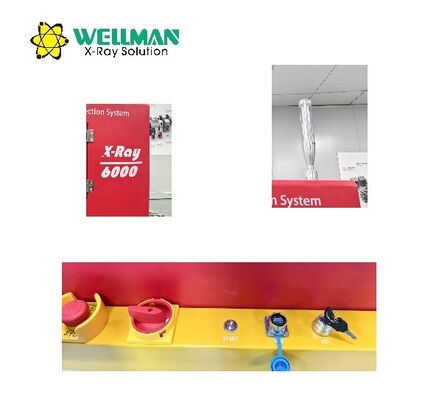

Safety Features

Radiation Leakage	No leakage
Lead Glass Observation Window	Transparent lead glass window shields radiation to observe internal status
Window and Back Door Safety Interlock	X-ray tube powers off immediately when window or door opens
Electromagnetic Safety Switch	Locks when X-ray is on, preventing window opening
Emergency Stop	Located next to operation position for immediate power cutoff
Tube Protection	Software prevents leaving without closing X-ray tube

Working Principle

Software Function

Function module	Operation	Keyboard and mouse can finish all operations
	X-ray tube control	Using mouse to click the X button can turn on or off the X-ray.
	Status bar	Indicates the interlock status, pre-heat status, and X-ray status by flashing alternately red and green.
	Image effect adjustment	The brightness, contrast and gain of the image can be adjusted freely to achieve a satisfactory result.
	Product list	Users can save the inspection parameters such as Z-axis position, brightness, contrast and gain, and can directly call the parameters.
	Navigation window	the table will move to the place you click and display on the screen.
	Motion axis status	Display real-time coordinates.
	Inspection result	The measurement results (voids rate, distance, area, etc., set by users) display in order.
	Speed control	The movement speed of each axis can be adjusted to slow, normal and fast.
Voids rate measurement	Automatic calculation	Click on two points to determine a rectangle.
	Parameters adjustment	Users can adjust the grayscale threshold, pixel, contrast, size filtering and other parameters.
	Add voids manually	Users can draw a polygon or a free figure and calculate it as a void into the void rate.
	Save parameters	Users can save parameters such as grayscale threshold, pixel, contrast, size filtering and other parameters, and can directly call the parameters.
Other measurement function	Distance	Click the A and B points to set as the baseline, then click the C point to measure the vertical distance from the C point to the baseline.
	Distance rate	It is mostly used to measure the soldering rate of the through-hole.
	Angle	Click the A and B points to set as the baseline, then click the C point to measure the angle between the BA and BC rays.
	Radius	Click three points to determine a circle and measure the circumference, area and radius.
	Perimeter	It is mostly used to measure square components, click two points to determine a square, measure the length, width and area.
Automatic inspection	Manual setting	Users can set any positions on the table as inspection points, the software will automatically inspect and save the picture.
	Array	For the regular inspection points, users only need to set two of the inspection points and the number of rows and columns, the software will automatically inspect each point and save pictures.
	Automatic identification	For inspection points with obvious features, the software automatically identifies the positions, takes measurements, and saves the image.
