PCB X Ray Machine

Automatic X-ray Inspection Equipment with Simple Operation for PCBA/BGA/LED inspection

All Category

X Ray Counter

PCB X Ray Machine

SMD Tower

Automated X Ray Inspection

Electronics X Ray Machine

Solder Paste Storage Cabinet

Hamamatsu X Ray Source

BGA X Ray Machine

Automatic Splicing Machine

SMT X Ray Machine

Hamamatsu Image Intensifier

3D X Ray Inspection

X Ray Image Intensifier

Mr. Jeff Chan

sales8@well-man.com

＋86 18406666351

＋86 18406666351

Chat Now

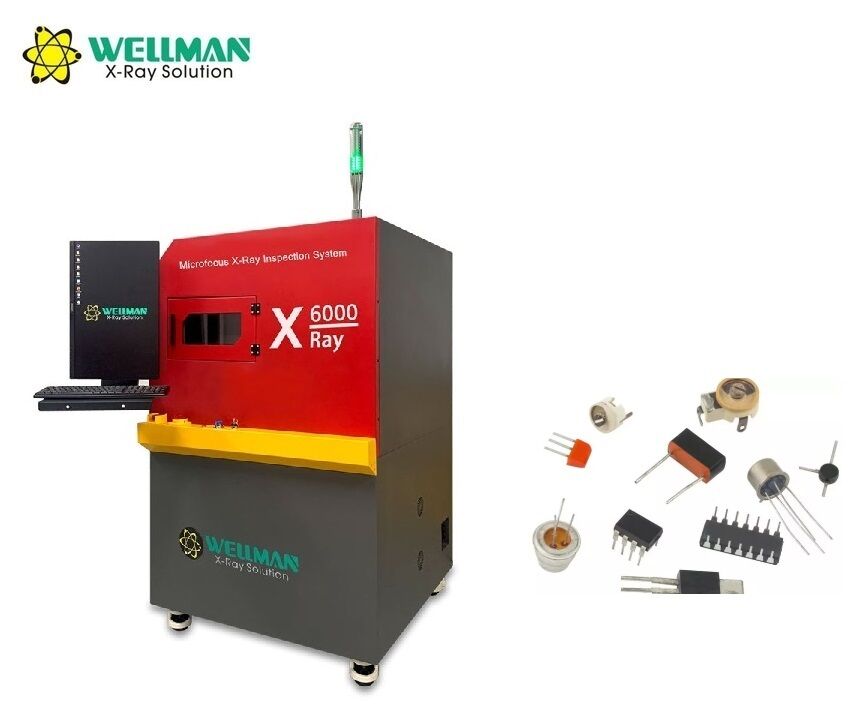

Automatic X-ray Inspection Equipment with Simple Operation for PCBA/BGA/LED inspection

Brand Name:	WELLMAN
Model Number:	X-6000
MOQ:	1
Payment Terms:	T/T
Supply Ability:	Worldwide supply

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO9001,FDA

Max Tube Voltage:

Max Load:

Packaging Details:

Wooden case

Supply Ability:

Worldwide supply

Highlight:

Automatic PCB inspection machine

BGA inspection equipment with warranty

LED X-ray machine simple operation

Product Description

Automatic PCBA/BGA/LED Inspection Equipment with Simple Operation

The X-6000 Automatic Inspection Equipment delivers advanced X-ray inspection capabilities for PCBA, BGA, and LED components with intuitive operation and high efficiency.

Working Principle

Key Advantages

13×13 cm high-definition large-area digital flat panel detector

420×420mm table with 15KG load capacity

Easy operation - only 2 hours training required

Hamamatsu tubes ensure extended lifespan and maintenance-free operation

Programmable inspection procedures for automated high-volume inspection

Automatic navigation window - table moves to your click location

Hardware Specifications

X-ray Source
Type	Closed, microfocus
Max Tube Voltage	90kV
Max Tube Current	200μA
Focal Spot Size	5μm
Function	Auto preheat
Flat Panel Detector
Effective Area	130mm×130mm
Pixel Size	85μm
Resolution	1536×1536
Frame Rate	20fps
Table
Size	420mm×420mm
Detectable Area	400mm×400mm
Max Load	15kg
Equipment
Magnification	Geometry 150X \| System 1500X
Inspection Speed	Max 3.0s/point
Dimensions	1100mm (L) × 1000mm (W) × 1600mm (H)
Weight	1000kg
Power Supply	AC110-220V 50/60HZ
Max Power	1300W
Industrial PC	Intel I5 CPU, 8G RAM, 240GB SSD
Displayer	24" HDMI LCD

Safety Features

Emergency Stop: Located next to operation position for immediate power cutoff

Tube Protection: Software prevents leaving without closing X-ray tube

Radiation Leakage: No leakage (international standard: ≤1μSv/h)

Lead Glass Observation Window: Transparent lead glass window shields radiation to observe internal status

Window and Back Door Safety Interlock: X-ray tube powers off immediately when window or door opens

Software Functions

X-ray Tube Control

Using mouse to click the X button can turn on or off the X-ray.

Status Bar

Indicates the interlock status, pre-heat status, and X-ray status by flashing alternately red and green.

Image Effect Adjustment

The brightness, contrast and gain of the image can be adjusted freely to achieve a satisfactory result.

Product List

Users can save the inspection parameters such as Z-axis position, and can directly call the parameters.

Navigation Window

The table will move to the place you click and display on the screen.

Motion Axis Status

Display real-time coordinates.

Inspection Result

The measurement results (voids rate, distance, area, etc., set by users) display in order.

Speed Control

The movement speed of each axis can be adjusted to slow, normal and fast.

Voids Rate Measurement

Automatic calculation - Click on two points to determine a rectangle.

Parameters Adjustment

Users can adjust the grayscale threshold, pixel and other parameters to get accurate results of automatic calculation.

Add Voids Manually

Users can draw a polygon or a free figure and calculate it as a void into the void rate.

Save Parameters

Users can save parameters such as grayscale threshold and can directly call the parameters.

Other Measurement Functions

Distance

Click the A and B points to set as the baseline, then click the C point to measure the vertical distance.

Distance Rate

Mostly used to measure the soldering rate of the through-hole.

Angle

Click the A and B points to set as the baseline, then click the C point to measure the angle between the BA and BC rays.

Radius

Click three points to determine a circle and measure the circumference, area and radius.

Perimeter

Click two points to determine a square, measure the length, width and area.

Automatic Inspection

Manual Setting

Users can set any positions on the table as inspection points, the software will automatically inspect and save the picture.

Array

Users only need to set two of the inspection points and the number of rows and columns.

Automatic Identification

For inspection points with obvious features, the software automatically identifies the positions, takes measurements, and saves the image.

Application Examples

BGA Solder Bridge

BGA Solder Voids

PCB Through-Hole

IC Voids and Gold Wire

LED Solder Voids

LED Gold Wire Crack

Capacitor

Inductor

Sensor

Thyristor Surge Suppressors

Fiberglass

Cable

Diode

Steel Pipe Welding Gap

Automobile Electronics
