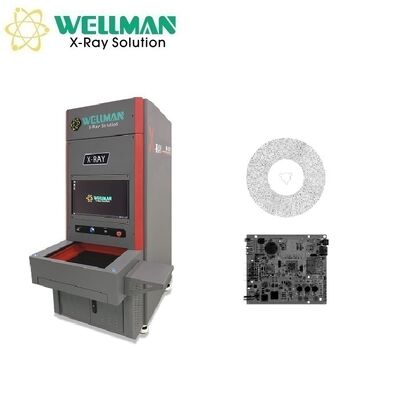

Microfocus X-Ray Parts Counter XC-01 delivers fast and accurate counting for electronic components with advanced imaging technology and AI-powered algorithms.
| X-ray Source | ||
|---|---|---|
| Type | Integrated, microfocus | |
| Max tube voltage | 80kV | |
| Max tube current | 700μA | |
| Focal spot size | 30μm | |
| Flat Panel Detector | ||
| Type | Super definition digital FPD | |
| Effective area | 430mm*430mm | |
| Pixel size | 139μm | |
| Resolution | 3072*3072 | |
| Reel/Tray Counting | ||
| Max size | 17"(430mm) | |
| Max thickness | 88mm | |
| Min parts size | 01005 | |
| Speed | 7-10s | |
| Accuracy | 01005≥99.98%, 0201&above≥99.99% | |
| Equipment | ||
| Dimensions | 1000mm (L)*1300mm (W)*1820mm (H) | |
| Weight | 580kg | |
| Power supply | AC110-220V 50/60HZ | |
| Max power | 800W | |
| Industrial PC | I7 CPU, 16G RAM, 256G SSD+4T HDD | |
| Displayer | 24"HDMI LCD | |
| Other Functions | ||
| Auto code scanning | Barcode and QR code | |
| Label printing | Print corresponding label when user takes out a reel | |
| Counting record | Inquiry by time range, work order number | |
| Management system connection | MES, ERP, WMS etc. | |
| Mode switching | No need to switch single/multi reel mode | |
| Work order no. | Support work order number recording | |
| Safety Features | ||
| Radiation leakage | No leakage, international standard: ≤1μSv/h | |
| Back door safety interlock | X-ray tube powers off immediately when back door opens | |
| Anti-pinch | Safety light curtain stops drawer immediately when obstructed | |
| Emergency stop | Front-mounted emergency stop button | |
| Reel size | Parts size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7"(180mm) | 01005 | 40000 | 99.98% | 9-10s |
| 7"(180mm) | 0201 | 20000 | 99.99% | 8-9s |
| 7"(180mm) | 0402 | 10000 | 99.99% | 7-8s |
| 7"(180mm) | 0603 | 5000 | 99.99% | 7-8s |
| 10"(254mm) | 1206 | 5000 | 99.99% | 7-8s |
| 15"(380mm) | 1206 | 10000 | 99.99% | 7-8s |
Performance continues to improve with algorithm updates, becoming faster and more accurate over time.
Our counting software utilizes powerful artificial intelligence deep learning algorithms that automatically identify components and apply appropriate algorithms without manual binding. The system learns from component data including:
As counting operations increase, accuracy improves continuously. The system easily handles similar components or larger trays with enhanced precision.
Every Wellman X-ray counter connects to our cloud database, automatically uploading machine data and images while downloading the latest database updates. Our engineers continuously optimize algorithms based on collected data and regularly update the cloud database.
This system ensures counting accuracy approaches 100% over time while expanding component type coverage. When encountering new components, the system can immediately access stored data for higher efficiency and accuracy.
