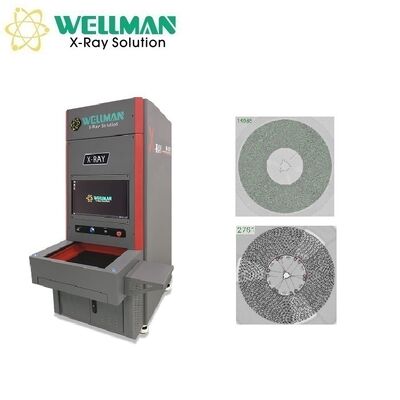

| Brand Name: | WELLMAN |
| Model Number: | XC-01 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Reel Size | Parts Size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7" (180mm) | 01005 | 40000 | 99.98% | 9-10s |
| 7" (180mm) | 0201 | 20000 | 99.99% | 8-9s |
| 7" (180mm) | 0402 | 10000 | 99.99% | 7-8s |
| 7" (180mm) | 0603 | 5000 | 99.99% | 7-8s |
| 10" (254mm) | 1206 | 5000 | 99.99% | 7-8s |
| 15" (380mm) | 1206 | 10000 | 99.99% | 7-8s |
| Type | Integrated, microfocus |
| Max Tube Voltage | 80kV |
| Max Tube Current | 700μA |
| Focal Spot Size | 30μm |
| Type | Super definition digital FPD |
| Effective Area | 430mm × 430mm |
| Pixel Size | 139μm |
| Resolution | 3072 × 3072 |
| Max Size | 17" (430mm) |
| Max Thickness | 88mm |
| Min Parts Size | 01005 |
| Speed | 7-10s |
| Accuracy | 01005 ≥ 99.98%, 0201 & above ≥ 99.99% |
| Dimensions | 1000mm (L) × 1300mm (W) × 1820mm (H) |
| Weight | 580kg |
| Power Supply | AC110-220V 50/60HZ |
| Max Power | 800W |
| Industrial PC | I7 CPU, 16G RAM, 256G SSD + 4T HDD |
| Displayer | 24" HDMI LCD |
| Auto Code Scanning | Barcode and QR code |
| Label Printing | Automatic printing when user takes out a reel |
| Counting Record | Inquiry by time range and work order number |
| Management System Connection | MES, ERP, WMS, etc. |
| Mode Switching | No need to switch single/multi reel mode |
| Work Order No. | Support work order number recording |
| Radiation Leakage | No leakage, international standard: ≤1μSv/h |
| Back Door Safety Interlock | X-ray tube powers off immediately when back door opens |
| Anti-pinch | Safety light curtain stops drawer immediately upon obstruction |
| Emergency Stop | Front-mounted emergency stop button |
Our counting software utilizes a powerful artificial intelligence deep learning algorithm that automatically identifies components and applies appropriate algorithms without manual binding. The system learns from counted component data including:
As counting operations increase, accuracy improves continuously. The system easily handles similar components or larger trays with enhanced precision over time.
Every Wellman X-ray counter connects to our cloud database. Machine data and images are uploaded to the cloud, with automatic downloading of the latest database updates. Our engineers optimize algorithms based on collected data and regularly update the database for all customers.
Over time, counting accuracy approaches 100% with expanding component type coverage. When encountering new components, our software can directly access stored data from the cloud database, delivering higher efficiency, accuracy, and coverage.
