| Brand Name: | WELLMAN |
| Model Number: | XC-01 |
| MOQ: | 1 |
| Payment Terms: | T/T |

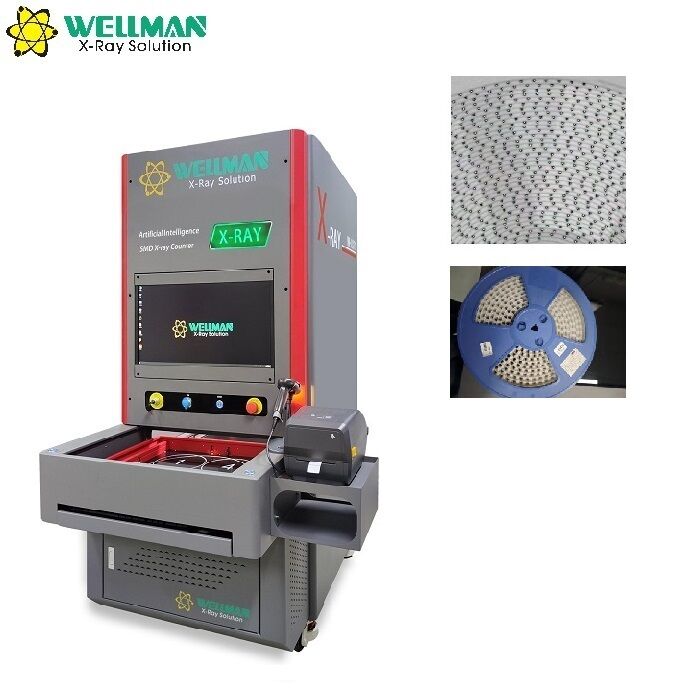

Wellman X-Ray Reel Counter XC-01 - Advanced X-ray counting system with AI-powered component recognition for high-speed, accurate parts counting of 01005 components and larger.
| Type | Integrated, microfocus |
|---|---|
| Max tube voltage | 80kV |
| Max tube current | 700μA |
| Focal spot size | 30μm |
| Type | Super definition digital FPD |
|---|---|
| Effective area | 430mm * 430mm |
| Pixel size | 139μm |
| Resolution | 3072 * 3072 |
| Max size | 17" (430mm) |
|---|---|
| Max thickness | 88mm |
| Min parts size | 01005 |
| Speed | 7-10s |
| Accuracy | 01005 ≥ 99.98%, 0201 & above ≥ 99.99% |
| Reel Size | Parts Size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7" (180mm) | 01005 | 40000 | 99.98% | 9-10s |
| 7" (180mm) | 0201 | 20000 | 99.99% | 8-9s |
| 7" (180mm) | 0402 | 10000 | 99.99% | 7-8s |
| 7" (180mm) | 0603 | 5000 | 99.99% | 7-8s |
| 10" (254mm) | 1206 | 5000 | 99.99% | 7-8s |
| 15" (380mm) | 1206 | 10000 | 99.99% | 7-8s |
Our counting software leverages advanced AI deep learning algorithms, enabling automatic component identification without the need for manual binding. The system keeps improving continuously by learning from component data such as:
Every Wellman X-ray counter connects to our cloud database, automatically uploading counting data and images. Our engineers continuously optimize algorithms based on collected data, with regular updates pushed to all connected systems.
This continuous improvement cycle ensures counting accuracy approaches 100% over time while expanding component type coverage.
