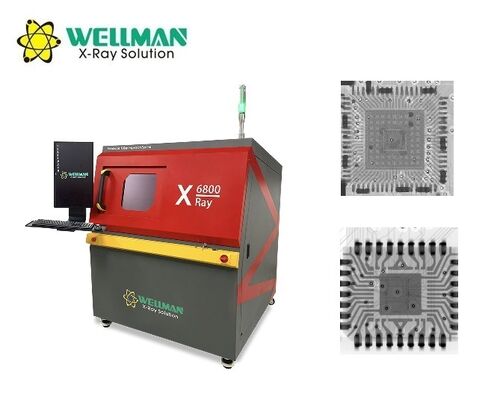

X-ray Source
Type	Closed, microfocus
Max tube voltage	90kV (110kV, 130kV optional)
Max tube current	200μA
Focal spot size	5μm (4μm, 2μm optional)
Function	Auto preheat
Flat Panel Detector
Effective area	130mm×130mm
Pixel size	85μm
Resolution	1536×1536
Frame rate	20fps
Tiltable angle	60°
Table
Size	530mm×530mm
Detectable area	500mm×500mm
Max load	10kg
Equipment
Magnification	Geometry 200X	System 1500X
Inspection speed	Max 3.0s/point
Dimensions	1360mm (L) × 1365mm (W) × 1730mm (H)
Weight	1200kg
Power supply	AC110-220V 50/60HZ
Max power	1500W
Industrial PC	I5 CPU, 8G RAM, 500GB SSD
Display	24" HDMI LCD
Safety Features
Radiation leakage	No leakage, international standard: ≤1μSv/h
Lead glass observation window	Transparent lead glass window shields radiation to observe inner status
Window and back door safety interlock	X-ray tube powers off immediately when window or back door is opened
Electromagnetic safety switch	Locks when X-ray is on, preventing window opening
Emergency stop	Located next to operation position for immediate power off
Tube protection	Software prevents leaving without closing X-ray tube

Software Capabilities

Function Module
Operation	Keyboard and mouse complete all operations
X-ray tube control	Mouse click X button to turn on/off X-ray
Status bar	Indicates interlock status, pre-heat status, and X-ray status with red/green flashing
Image effect adjustment	Freely adjustable brightness, contrast and gain
Product list	Saves inspection parameters for same product inspection
Navigation window	Table moves to clicked position and displays on screen
Motion axis status	Displays real-time coordinates
Inspection result	Measurement results display in order (voids rate, distance, area, etc.)
Speed control	Adjustable movement speed for each axis (slow, normal, fast)
Voids Rate Measurement
Automatic calculation	Click two points to determine rectangle for calculation
Parameters adjustment	Adjust grayscale threshold, pixel, contrast, size filtering parameters
Add voids manually	Draw polygon or free figure to calculate as void
Save parameters	Save grayscale threshold, pixel, contrast, size filtering parameters
Other Measurement Functions
Distance	Click A and B points for baseline, then C point for vertical distance
Distance rate	Calculate percentage ratio of vertical distances between points
Angle	Click A and B points for baseline, then C point for angle measurement
Radius	Click three points to determine circle and measure circumference, area, radius
Perimeter	Click two points for square measurement of length, width and area
Automatic Inspection
Manual setting	Set any table positions as inspection points for automatic inspection
Array	Set inspection points with rows/columns for automatic inspection
Automatic identification	Software automatically identifies positions, takes measurements, saves images
